24 inch 304 Stainless Steel Razor Wire -Barbed Tape Concertina Double Coils 304 SS-Corrosion resistance 10-year guarantee.

We supply Stainless Steel Concertina Razor Wire 304, 24 inch diameter and other sizes, for boundary wall fencing. SS304 Concertina Razor Wire Double Coils feature a concertina design into coils providing enhanced security for perimeter fencing solutions.

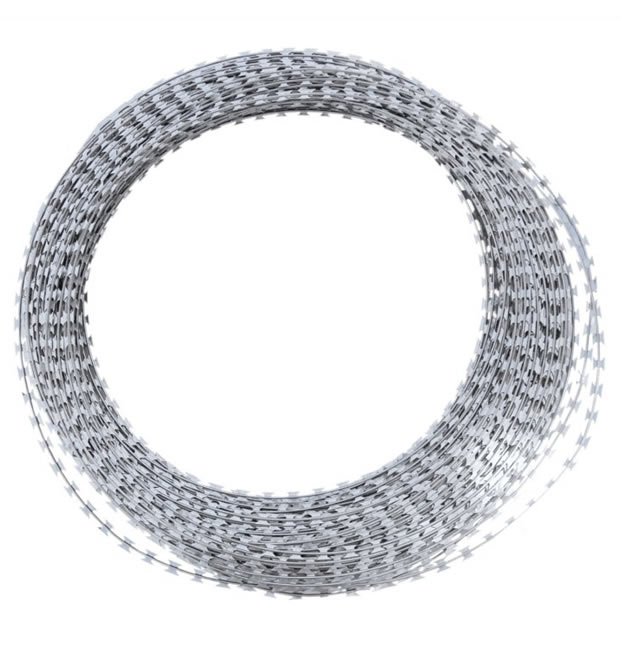

304 SST 24" Concertina Razor Wire

Materials: Prime quality 304 stainless steel, featuring durability, corrosion resistance, and longevity.

Specifications:

• Spiral Diameter: 24 inches
• Material: AISI 304 Stainless Steel
• Type: Double Coil
• Form: Concertina Razor Wire

Stainless Steel Barbed Tape Concertina Double Coils, 304 SST A5

Double Coil Design provides added security with two layers of razor wire coils, enhancing the deterrent effect of the fencing.

Major Uses:

• Perimeter Security
• Border Protection
• Fencing of power plants, water treatment facilities, etc.
• Warehouses, and storage yards.

Stainless Steel 304 Grade Razor Wire Security Fencing Project Example

Combination of 24" SS Concertina Razor Wire Double Coils and wire mesh fence to create a robust and effective barrier.

24" SS Concertina Razor Wire Double Coils to cover the perimeter length

Wire Mesh Fence:
Height: 6 feet
With posts, tension wire and fence gates

Fittings for installing: Gloves, safety goggles, brackets, clips, anchors, tensioning tools, and measuring tape.

Installation:
1, Install mounting brackets / posts onto existing fencing, walls, or support structures at regular intervals using appropriate anchors.
2, Ensure brackets are securely fastened and aligned properly for even distribution of the razor wire.
3, Attaching Razor Wire Coils: Attach the first coil of razor wire to the brackets using clips / fasteners provided.
4, Continue attaching subsequent coils, ensuring a consistent spacing between coils to ensure uniform coverage along the perimeter.
5,Use tensioning tools to tighten the razor wire coils.
6, Adjust tension as needed to achieve the desired security and deterrence.

Customized Specifications

Concertina razor wire stainless steel 304, 730mm diameter

Concertina razor wire BTO 22 in 304 stainless steel
Detail:
Concertina BTO 22 in 304 stainless steel, with 6 fils galvanised or stainless steel tension wires and fixing accessories.
The concertina coils to be installed on a fence with two shutters, as described below:
Concertina made of stainless steel sheet AISI 304.
The strip of slats, the steel wire and the clip made of steel, in accordance with standard EN 10088-3.
Blade thickness: 0.50 ± 0.1 mm.
Breaking strength of the strips: Min. 550 N/mm².
Width of slats/strip/tip: minimum 15 mm.
Blade length: 22 mm minimum.
Distance between 2 blades (measured centre to centre): Between 32 and 40 mm.
Stainless steel wire diameter: 2.5 mm ± 0.1 mm.
Corrosion resistance: 10-year guarantee.
