Anti-climb razor wire Palisade Fence - W profile Palisade triple point-Palisade perimeter fence
We provide a variety of perimeter security solutions of razor wire+palisade fence combination, supplied with various fencing and fixing accessories. We also help with on-site installation and technical support, at request of customers. Steel palisades are mostly w style, picket style, hot dipped galvanized or black powder coated. Gates available, also topped with concertina razor barbed wire.
For example:

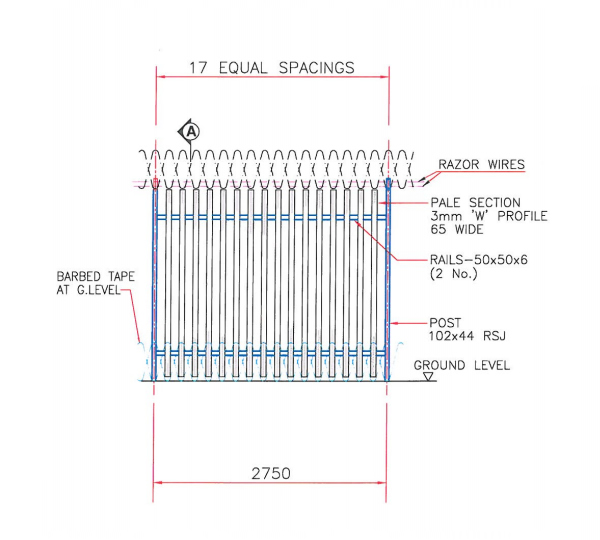

500LM of Palisade Steel Fence + SS (316 grade) razor tape -BTO 22 as per enclosed drawing.
Product Specifications:
Hot deep galvanise steel palisade fence: 2.40m high+0.5m barb arm - (500lm)
"W" pales 3mm thick x 70mm or 65mm wide as per enclosed drawing x triple head (17 equal spacing)
Rails - 50x50x6mm , 2720 mm long (02 nos / bay )
Posts - rsj 102x44x7.44kg/m , 3.1m long, spacing 2.75m
Fish plates (02 nos / bay)
m8 x 30 mm bolts with perma security nuts ( for pales to rails fixing)
m12 x 40 mm cup square bolts with perma security nuts (for rails to fish plate fixing ) (4 nos / bay)
Extension arms : 60x60x6mm "V" type barb arm with 6 rows pvc coated gi barbed wire grey
600mm dia top cconcertina razor tape: ss (316 grade) razor tape -BTO 22. core wire ss.
450mm dia top cconcertina razor tape: ss (316 grade) razor tape -BTO 22. core wire ss.
Galvanized steel, maintenance free, palisade fencing.
The fencing system comprising 2 no. horizontal rails 50x50x6mm iron grade 43 A steel. Bolted and secured with perua securltt nuts; 2000mm long x 65mm wide x 3mm thick cold rolled w section pales with triple poimted top. Bolted and secured with security nuts; 250mm x 40mm x 8mm flat grade 43 A steel extension arm bolted and secured with security nuts
102 x 44 x 7.44 kg/m r.s.j. section grade 43 a steel posts 3100mm long set at 2750mm centres; complete with intermediate support legs and fishplates as detailed in the specification and drawing.
General purpose barbed tape obstacle. Double coil 450 mm dia. fabricated from aisi 301 series austenitic stainless steel strip hardened to rockwell (30n) 50-55. Stainless steel strip shall be 0.64/nm thick by 32mm wide before fabricating. Barb clusters shall consist of four (4) bars punched 100mm on center. With all accessories complete as detailed in the specification and drawings.
Palisade fence as per spec. supplied -grade g250/z600
Panel size 2.1m high x 4m long
w pale : 80x19mm x 2.5mm thick x 2.05mm long with a single point 100mm long - w pale spaced at 160mm crs 18 pales per panel
rail : 50 x 80mm x 2.5mm thick x 4m long @ 2 pce per panel reinforcing angle 50 x 50 x 2.5mm thick x 4m long @1 pce per panel
post : 100 x 150mm x 2.5mm thick x 4m long pale, rail, post & components all hot dipped galvanized zinc quantity 600g/m2
fasteners : stainless steel bolts with tamper resistant shear off security nuts
Razor wire, hot dipped galvanised
Entrance Gates as per specification supplied -same finish as fence
c/- gate posts, chains, locks, drop bolts and accessories
3 x sets vehicle gates double leaf x 4m wide
4 x sets vehicle / crash gates double leaf x 6m wide
3 x sets pedestrian gates single leaf 2.1m h x 1m wide
Prefabricated palisade fencing for safety with sliding gates for entry and exit
Steel palisade fence details:
1. Fencing area 104 Meter (front) x 104 Meter (Back side) x 105 Meter Side. ( one side fencing with brick wall constructed perimeter)
2. Front side 2 nos 6 meter sliding Gate for Entry and Exit
3. Fence Height 1.8 meter
4. Angle iron 40 mm x 400 mm x 2mm thick
5. Finish: Red oxide primer coat and final paint coating in various colors for options.
6. Palisade panels: Coated steel palisade pickets in triple profile w or D, depending on security level required.
7. Galvanized spiral razor barbed wire of various sizes supplied for fencing tops to enhance security level.
Palisade Perimeter Fence Panels
Customized specifications
W style palisade
Palisade style steel pale
W Pales TPS 71x3 HA300
M12x30 Cup Head Bolts
M12 Shear Nuts
UK specification palisade fencing
Supply and installation of Palisade fence for power substations, cable, OHL projects, EPC projects
Single point W section palisade pales approx. 1820mm long galvanized.
Galvanised palisade fencing around 2000 high
Black palisade fencing with gates
Black powder coated palisade fencing with palisade rolling gates
Two single gates
One double gate
