BTO-22 Concertina Razor Wire Coils，high tensile SS 304, Stainless steel 316, Hot Dipped Galvanized
As professional supplier and distributor of various razor wire products, we supply razor blade concertina wire products to various countries including Saudi Arab, Africa, Australia, Rwanda,Burundi,Southern Sudan and other countries.
BTO-22 is the most commonly used blade model, with medium Barb Length about 22mm, it is used in railways, prisons, highways, factories, schools and other places. BTO-22 razor wire can be used as the default choice installed in straight lines atop fences or walls or in a flat wrap configuration to create anti climbing barriers.
Blade Sizes: BTO 22 is medium size blade for most common fencing uses; Blade Length more than 60mm, such as CBT-60 model, is suitable for large circle diameter installation; Blade Length about 10mm, such as BTO-10 is suitable for small circle fencing installations.
Concertina razor wire is usually attached on "Y" or "V" support, razor wire 4mm/3mm/2.8mm with razor wire coil diameters Ф=600mm, with distance between circles 150mm-400mm.
Meters of razor wire per coil:
600mmx10kg/roll
Cover length is 30cm between each loop, then 10kg can get 8-10m.
600mmx10kg/roll
Cover length is 15cm between each loop, then 10kg can get 4-6m.
Hot Dipped Razor Wire BTO-22 - Concertina with clips
Steel Sheet : hot dipped galvanized wire 60g/m2, 2.5mm+-0.5mm.
Coil diameter: 450mm
Install length: 10m, 56loops
Clips: 3 clips/two spirals
Thickness 0.5mm(±0.05mm)
Wire Dia. 2.5mm(±0.1mm)
Barb Length 22mm(±1mm)
Barb Width 15mm(±1mm)
Packing: Waterproof paper+Woven Bag

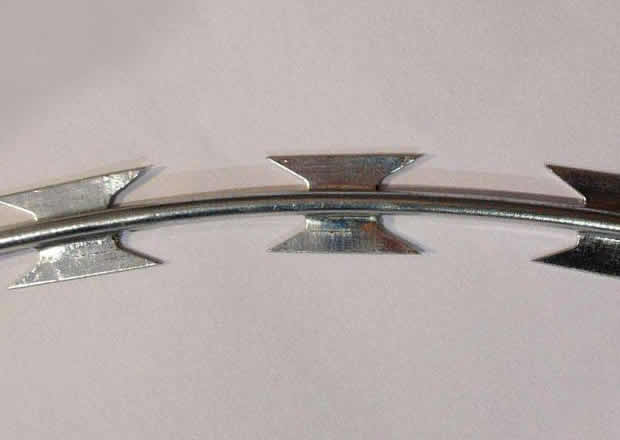

BTO-22 Blade Razor Concertina Wire Details:
| Model | Blade Thickness | Core Wire Diameter | Blade Length | Blade Width | Blade Space |
| BTO-22 | 0.45±0.05mm | 2.5±0.1mm | 22±1mm | 15±1mm | 34±1mm |
Crossed BTO 22 Concertina Wire 56 Loops (Loop Diameters, Length, Clips Needed)
| Blade Type | Notes | Outside Diameter | Standard Length per Coil | No.of Loops |
| BTO-22 | Cross type | 450mm | 8-9m(3 clips) | 56 |
| BTO-22 | Cross type | 500mm | 9-10m(3 clips) | 56 |
| BTO-22 | Cross type | 600mm | 10-11m(3 clips) | 56 |
| BTO-22 | Cross type | 600mm | 8-10m(5 clips) | 56 |
| BTO-22 | Cross type | 700mm | 10-12m(5 clips) | 56 |
| BTO-22 | Cross type | 800mm | 11-13m(5 clips) | 56 |
| BTO-22 | Cross type | 900mm | 12-14m(5 clips) | 56 |
| BTO-22 | Cross type | 960mm | 13-15m(5 clips) | 56 |
| BTO-22 | Cross type | 980mm | 14-16m(5 clips) | 56 |

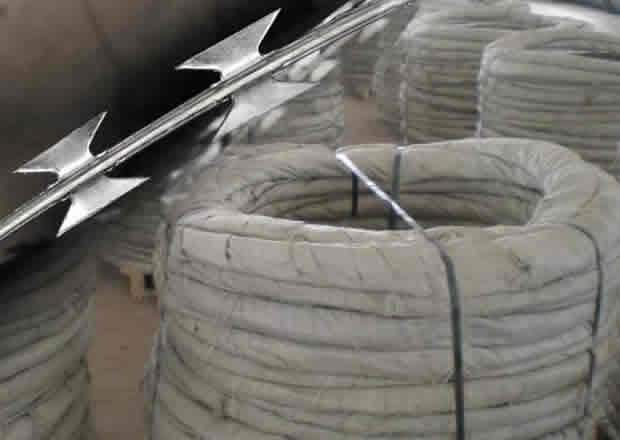

BTO-22 Galvanized Razor Wire Concertina Coils
Hot dipped galvanised iron razor wires with clips
size: 450mm x 33 loops x 5.50mtr x 4.0kgs 5000rolls
size: 700mm x 41 loops x 10.50mtr x 7.0kgs 1000rolls
Packing: each coil in paper cardboard then wrapped in white color pp woven cloth
10.0coils in a bundle of 4.0kgs & 5coils in bundle of 7.0kgs

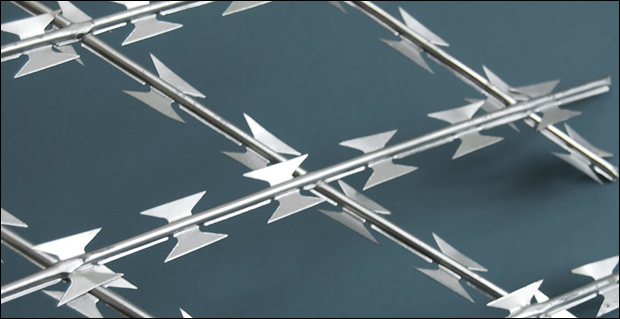

SS 304 BTO-22 Razor Wire for a Beach Area Fencing Project
High quality coating to prevent rust from the sea wind.
Blade profile BTO-22
Material: SS304 + Electrophoretic Paint Coating
Diameter: 700mm
10m / roll
Concertina wire (razor wire - Stainless steel) BTO-22, diameter = 450mm, blade thickness =0.4mm, include all the required installation accessories.
BTO 22 Concertina Razor Edge Wire Triple Coil
Height: 1600mm
Length: 70mm
Base Coil Diameter: 73 cm
Top Coil Diameter: 98 cm
Finishing: Hot Tip Galvanized
Material: High Tensile Steel
Wire Diameter: 2.5mm
Razor Thickness: 0.5mm
Razor Width: 15mm
Razor Length: 22mm
Razor Distance: 34mm
Razor edge wire single coil (dia. 700mm) continuous spiral/fasten two razor wire loops together with clips (blade type bto-22).
razor edge wire triple coil(top coil 980mm,2 x bottom coils 730 mm) continuous spiral/fasten two razor wire loops together with clips (blade type BTO-22).
concertina razor edge wire (triple coils) base coil dia 730 mm & top coil dia 980 mm, coils jointed in pyramid shape.
Type BTO-28, Hot dipped/ galvanized.
BTO-22 Galvanized Razor Wire Coils With Loops Dia 600 mm for railways, prisons, highways, factories, schools.
Recommended Stretch Length: 6-8m
Coil Diameter when Stretch: 400mm
Spiral turn per coil: 54
Clips per Spiral: 3
Blade Size: 22mm
Barb Spacing: 42mm +/- 1
Blade Tickness: 0.5mm Tolerance 0.05
Core wire Diameter: 2.5mm +/- 0.1
Galvaized: 240kg/m2
Tensile Strength: 150kgf/mm2
BTO-22 Stainless Steel Concertina Razor Wire Coils
Concertina Dia: 600mm (Before Stretch).
No of Loop : 55
Blade Profile: BTO 22
Barb Length : 22mm
Barb Spacing : 35mm
Barb Width: 15mm
Strip Thickness : 0.40mm (No Negative tolerance)
Material : SS316
WIre Dia: 2.50mm (+/-0.03mm)
Wire Tensile Strength : Min. 1550 MPa
Clip Thickness: 1.50mm
Clips Per Loop: 3 Clip per Loop
BTO-22 Concertina Razor Barbed Tape 1000mm in SS 304
Diameter 1000mm ±10mm
Type: BTO-22
Material
Stainless Steel 304
Barb ( THICKNESS ) 0.5±0.05 mm
Barbed ( LENGTH ) 22.0±1mm
Barbed ( WIDTH ) 15±1 mm
Barbed spacing 34±1 mm
Coil wire Diameter 2.5 mm ±0.15 mm
Material high tensile stainless steel 304 wire minimum 1200N/mm²
CONCERTINA RAZOR BABRBED TAPE 500MM (STAINLESS STEEL 304)
Razor Concertina Barbed Tape DIAMETER SIZE 500mm ±10mm
Blade Type BTO-22
Material Stainless Steel 304
Barb ( THICKNESS ) 0.5±0.05 mm
Barbed ( LENGTH ) 22.0±1mm
Barbed ( WIDTH ) 15±1 mm
Barbed spacing 34±1 mm
Coil wire Diameter 2.5 mm ±0.15 mm
Material high tensile stainless steel 304 wire minimum 1200N/mm²
Cross Type
Protective gloves
Razor Concertina Barbed Tape clips
BTO-22 galvanized razor wire with steel clips, loop size 97cm coil weight 14kg
BTO-22 Galvanized Razor Wire Coils With Loops Dia 600 mm
BTO-22 Concertina razor wire - Diameter fi980 mm,diameter fi730 mm
Technical Requirements:
Material - galvanized steel (wire min. Z70, blades min. Z180);
54-56 rolls per wire;
Blade type BTO-22;
Razor wire BTO - 22 Electric Galvanized
Razor wire BTO 22 with 3 clips, galvanizing: zn 8-12 gms/m2, wieght = 5kg/coil outer diameter = 450 mm, blade = 20mm, barb spacing = 35 mm
BTO-22 Galvanized Military Concertina Razor Wire Fence Cross Concertina Wires
BTO-22 Galvanized Razor Wire Coils With Loops Dia 600 mm used for anti climbing security fence topping
Processing:
This type of razor wire is made of galvanized sheet and wire.
Blade making: The steel sheet is punched to razor blade BTO-22 profile by stamping press with dies.
Steel Wire Core: The core of razor wire is made from high-tensile steel wire, as the backbone of the razor wire, providing structural support for the blades.
Sharpening: After stamping, the edges of the blades are sharpened, as part of the stamping process or in a separate step.
Attaching Blades to Core Wire: The sharpened blades are then positioned and crimped onto the high-tensile wire core at regular intervals. Ensuring that the blades are securely attached and evenly spaced.
Coiling, Packing & Shipping
The razor wire is carefully coiled, into large rolls making it easier to transport and deploy. Packaged with waterproof paper and woven bag outside each roll. Usually 50rolls or 100rolls be a big bundle by metal strip.
Each roll with inner waterproof paper and woven bag outside, then 50rolls or 100roll be a bundle by metal strip.
Bundled razor wire put on pallet.
Bulk razor wire put into cartons.
