Crossed Spiral Concertina Razor Wire - cross razor loops Diameter 24 inches, 36 inches,60cm, 100cm

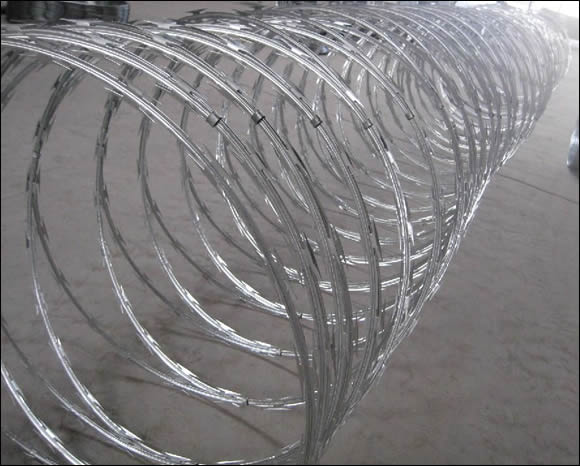

Crossed Concertina Wire, also known as Crossed Razor Wire, Spiral Razor Wire, has continuous spirals by fastening two razor wire loops together at various intervals with clips. The coils diameter, loop numbers and wire diameter can be customized.
Concertina cross type razor wire enjoys good appearance, practical use and can ensure stronger protection than straight or single line razor wire tapes.
Spiral razor wire types: single coil razor wire, double and crossed coils razor wire.
The characteristics of the single-loop blade razor wire: no clips are required, and it is installed according to its natural unfolded shape.
Features of the double-spiral crossed razor wire: The spiral-shaped crossed blade razor wire is strongly clamped by two coils of blade razor wire produced out of stainless steel sheet and a galvanized steel sheet.
Each roll of spiral cross wire (galvanized) consists of a single strand of rigid helical steel wire and a blade, and the blades are evenly distributed on it. The inner circumference between the crossed circles is evenly fixed by clips, and when stretched, the sharp fencing barrier is formed.
Easy installation and uses: Crossed concertina wire with clips shall be fully stretched, easily unfolded to form a cage-like cylindrical fence.

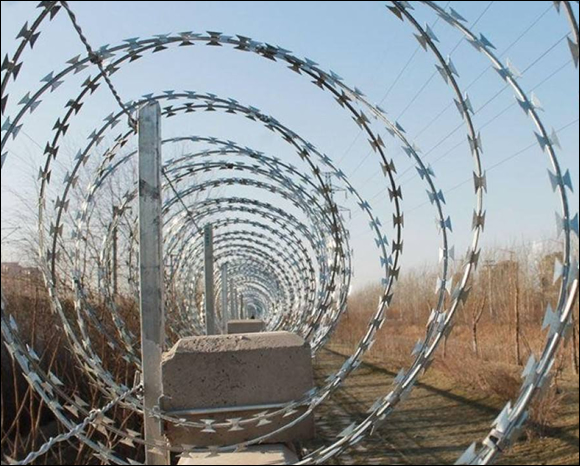

Crossed concertina razor wire can be easily and quickly installed on top of existing fences and strong high walls, can also be installed in trenches on roofs or placed on the ground.
Installation Process: Concertina razor wire is more complex to install due to its coiled nature. It involves uncoiling the wire and stretching it out along the perimeter, often requiring several people or machinery depending on the length and location. Clips or ties are used to maintain the coiled shape and provide structural integrity.
Security Level: Crossed concertina barbed wire offers a higher level of security due to its coiled concertina design, making it difficult to cut through or climb over without specialized tools. Increased security by using electrified constantina wire with smooth inner rolls.
Stainless Steel Crossed Concertina Wire with Clips / Fasteners
Razor wire crossed loops
Diameter 24 inches (1200feet) and 36 inches(1800 feet)
BTO-22 Galvanized Military Concertina Razor Wire Fence Cross Concertina Wire
Concertina Razor Wire: Cross & Single Type
Crossed Spiral Concertina Coil of 450 mm diameter (72 coils/rolls)
Specifications:
i) Made of hot dipped galvanized steel razor Coil.
ii) Central Core of High Tensile G.I spring steel core,Wire of 2.2+-0.1 mm diameter.
iii) Machine crimped tape of razor shape steel sheet blade (Low carbon GI strip) of length 10mm, width 13+-1 mm, thickness of 0.5+-0.005 mm, blade spacing: 25-+-1.
iv) One roll of concertina coil shall consist approx 56 turns/circle per unit.
v) One roll of concertina coil shall be expandable upto 5-6m length.
vi) One roll of concertina coil shall weight about 7kg +-5%.
Concertina razor wires, 60cm diameter coils
Roll Diameter: 60 cm Roll Length: 15 m
Thickness/blade: 0.5 mm
Wire diameter: 2.6 mm
Quantity of zinc: 40-50 G/m2
Stretching/resistance: 800-1000 Mpa
Concertina (razor) wires, 100cm diameter coils
Diameter: 100 cm Length: 15 m
Thickness/blade: 0.5 mm
Wire diameter: 2.6 mm
Quantity of zinc: 40-50 G/m2
Stretching/resistance: 800-1000 Mpa
Razor Barbed Type: cross razor
Barbed distance: 6"
Specification: wire gauge (SWG) 12# x 12#
Coil oitide diameter: 700mm (70cm)
Length: 10m - 12m per roll
