Electro Galvanized Wire - for fencing barbed wire, binding wire, Staple wire, welded mesh
Electro Galvanized Iron Wire Sizes:Electro galvanized iron wire ranging from BWG8# to BWG16# is the mostly used for customers. We also offer thinner galvanized wire down to BWG5# or up to BWG28# upon customers specific order. Single coil package for electro galvanized iron wire can be as small as 10 kg and up to maximum 1000 kg per coil.
Electro Galvanized Iron Wire Processing & Features:
This kind of galvanized wire is made with choice mild steel, through wire drawing, wire galvanizing and other processes. Electro galvanized iron wire has the characteristics of thick zinc coating, good corrosion resistance, firm zinc coating, etc.
Forms of Supply:
Electro galvanized iron wire can be supplied in the form of coil wire, spool wire or further processed into straightened cut wire or U type wire.
Electro galvanized iron wire applications:
Electro galvanized iron wire is mainly used in construction, express way fencing, binding of flowers as tie wire, barbed wire and wire mesh production.
Electro galvanized iron wire, electro galvanized steel wire, electro galvanized wire
BWG6-22 5.0MM-0.8MM
Zinc coat: 10-25g/m2
Tensile strength: 40-85kg/mm2
Packing :10-800kg/coil plastic inside and hassian outside/ weave outside.
Optional Information
- HS Code : 7217200000 Wire of Iron or Non-alloy Steel
- Payment : L/C or T/T
- Minimum Order : 1 Ton
Types:
Electric galvanized industrial wire
Electric galvanized barbed wire
Galvanized binding wire
Electro galv.
wire for welded mesh
Galvanized wire for staple wire
Customized Specifications

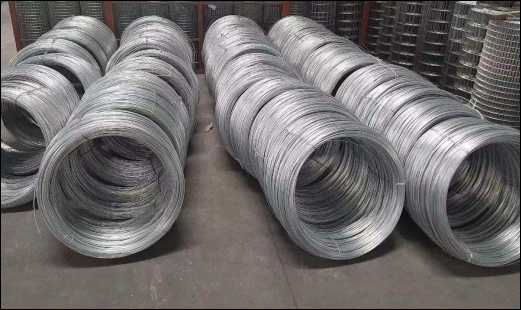

Electro galvanized round wires-special round wires to produce tie wires
Electro Galvanized Wire (Staple Wire).
Round DIAMETER = 0,82mm ( Tolerance +/- 0,01 mm )
TENSILE STRENGTH = (80 / 90 Kg/ mm2) ) , 800/900 N/mm2
SURFACE GALVANIZED : 10/12 g .
Electro Galvanized Welded Wire Mesh
Process Type: Electro galvanized welded wire mesh, galva after weld
Material: Electro galv. iron wire
Mesh:1/2"x 1/2"
Mesh roll: w= 1mtr x l = 25 mtr = 25 kg per roll)
Electro galva iron wire, wire dia : BWG 2.4 mm, zinc coating =8-12 g/m2, (9 kg x 1 = 9kg/roll). 1 rolls/ 1 pkgs
electro galva iron wire, wire dia : BWG 2.5 mm, zinc coating =8-12 g/m2, (9 kg x 1 = 9kg/roll). 1 rolls/ 1 pkgs
Electro Galvanized wires
Grade – 1006
Dia – 2.96 mm
Zinc Coat – Min 15 GSM
Coil weight – 500 Kg
Tensile – 450 – 550 MPa
