Traditional Twist Barbed Wire for agricultural fencing

Barbed wire is the most popular fencing wire made in three processing methods: traditional twisted, positive / straight twisted, reverse / negative twisted. Strands can be single or double. The wires are braided with a system of constant torsion, with barb prongs interlaced in the wires. As a traditional fencing product for protection and privacy, razor barbed wire is widely used in agriculture and perimeter fence.

Wire Materials: Galvanized steel wire, PVC coated iron wire in blue, green, yellow and other colors.
General Use: Barbed wire mainly serves in protecting of grassland boundary, railway, highway, etc.

Customized Specifications

Barbed wire 12x12 in BWG, Barb spacing: 6.0617 mm

Barbed wire 2.5 mm, barbed length: 20 mm double strand
4 points barbs at every 75mm

Barbed Wires A121
Material: STEEL
Material spec ASTM A121
Diameter 2.5 mm
Number of barb points 4
Distance, between barbs 75 mm
Length 200 m
Coating GALVANIZED

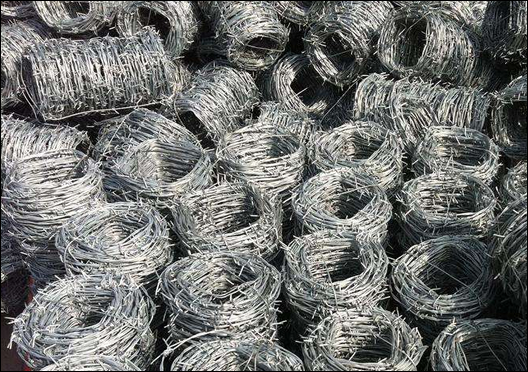

Galvanized barbed wire, Iowa pattern

Barbed wire, iowa pattern, 2 ply, 4 points,
Material: Mild steel strand wire, 2.5 mm diameter, galvanized, barbing wire 2.0mm, spacing between barbs 101 mm
Supplied in reels of 200 meters each

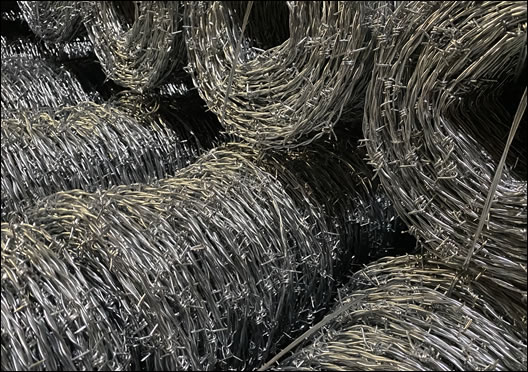

14 Gauge Concertina Barbed Wire

Barb type: Traditional twisted barb
Specifications
Gauge of strand and barb 14x14
Barbs spacing 5”
Galvanized type 3
Barb 4 points

Specification Lists of Standard Barbed Wire Traditional Twisted:

Gauge of Strand and Barb in B.W.G.	Approximate Length per Kilo in Meter
	Barbs Spacing 3"	Barbs Spacing 4"	Barbs Spacing 5"	Barbs Spacing 6"
12x12	6.0617	6.7590	7.2700	7.6376
12x14	7.3335	7.9051	8.3015	8.5741
12-1/2x12-1/2	6.9223	7.7190	8.3022	8.7221
12-1/2x14	8.1096	8.814	9.2242	9.5620
13x13	7.9808	8.899	9.5721	10.0553
13x14	8.8448	9.6899	10.2923	10.7146
13-1/2x14	9.6079	10.6134	11.4705	11.8553
14x14	10.4569	11.6590	12.5423	13.1752
14-1/2x14-1/2	11.9875	13.3671	14.3781	15.1034
15x15	13.8927	15.4942	16.6666	17.5070
15-1/2x15-1/2	15.3491	17.1144	18.4060	19.3386
