PVC Coated Barbed Wire - RAL 6005 Green Powder Coated，Plastic Coated GI Barbed Wire Black Color, for Fencing and Perimeter Security

PVC Coated Barbed Wire consists of a core of steel wire galvanized and coated with a layer of PVC (polyvinyl chloride) for enhanced corrosion resistance. NATO and IOWA type barbed wires are mainly used in agricultural and industrial security applications for fencing and perimeter security.

Process: PVC Coated Barbed Wire is typically galvanized before PVC coating. This is a process of extrusion, with wire passed through a pool of molten PVC, ensuring a uniform coating over the entire length of the wire. This type of barb wire has layer of zinc protection against rust and corrosion and pvc layer adding further protection, compared to non-pvc-coated barbed wires.

Twisted barb types: IOWA.

Colors: Green and black are the most commonly used.
Green pvc coating allows the coated barbed wire to blend in with the surrounding environment, Black coating makes the wire more visually noticeable.

Barb wire is usually wound into coils / rolls for storage or shipment.

Common size:
Wire Diameter: From 2.5mm to 3.5mm (core wire diameter), PVC coating thickness adding approximately 0.4mm to 0.6mm.
Barb Spacing: Commonly spaced 3" to 6" , offering different level of security required.

Major Applications
1, Agricultural Fencing: PVC coated barbed wire is popularly used for farms.
2, Airport Security Fencing: PVC coated barbed wire can be used with wire mesh fences to secure the airport perimeter, preventing unauthorized access while ensuring durability against weather conditions.

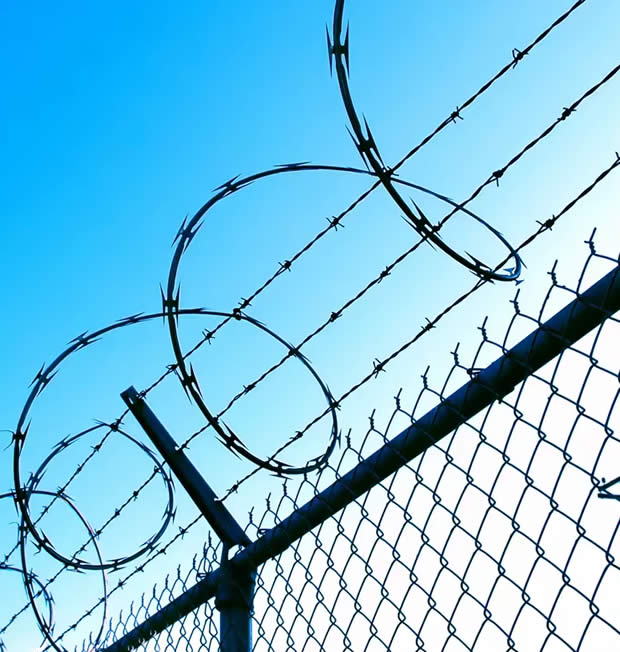

3, Military Bases: PVC coated barbed wire topped wire mesh fences to enhance security for military bases.

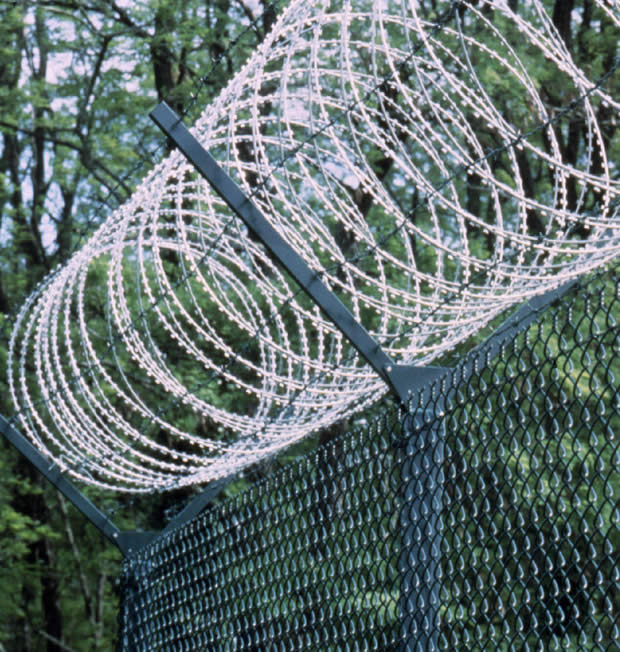

4, Industrial Sites: Barbed wire used with metal fencing can form strong physical barrier for power plants, manufacturing facilities and other Industrial sites.

We supply and export PVC coated barbed wire, fencing panel and posts.

PVC Coated Galvanized Iron Barbed Wire to Fence

Wire: 12 gauge x 4 point pvc coated barbed wire black in color
Pvc coated barbed wire black in color for perimeter security fencing
Exported to USA
Roll size: 30m, 50m, 100m

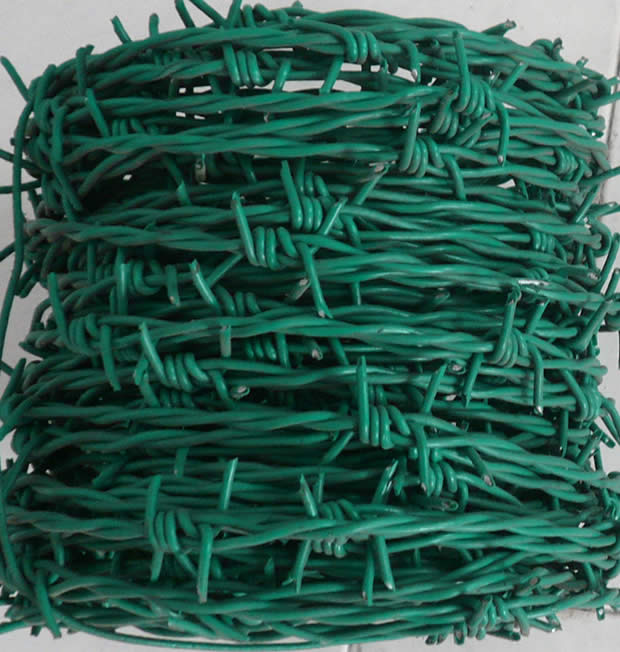

Wire Barbed, Rolls, PVC Green Coated

Wire diameter 1.8/2mm
Material: Galvanized Iron
Barbed wire G. I. core diameter 1.8/2mm
Coating: PVC green coated
Structure: 2 ply 4 points barbs at 100 c/c
Roll size: 100m

PVC Coated Barbed Wire, 2 Strand Twisted Wires, Coils
Structure: 2 twisted wires with 4 spikes, spaced 65 mm - 120 mm apart from each other.
Inside wire: galvanized wire.
PVC coating thickness: 0.4 mm - 0.6 mm.
Twisted wire diameter:
Inside wire diameter: 2.4 mm - 2.6 mm.
Outside wire diameter: 3.0 mm.
Thorns /Barbs wire diameter: 1.5 mm
Package: 250 m, to 400 m/coil or 30-50 kg/coil.

PVC Coated Barb Wire
Barb wire diameter: 1.5mm
Barb spacing: 5''
Barb distance: 15
Coating: 0.6mm
Wire diameter before coating: 3.5mm
Wire diameter after coating: 4.0mm
Roll length: 3cm

Chain Link Fence and Barbed Wire RAL 6005 Green Color, Double Strand

Chain Link Fence: 2.4m height, wire mesh 50x50mm x wire diameter 4.7mm
Chain link wire material: Galvanised and pvc green RAL 6005
Barbed wire 2.5mm, Barbed length: 20mm, Double strand, 4 points barbs at every 75mm
Galvanized and Powder coated green RAL6005
Stretch wire 3500m x 4.7mm

Concertina Barbed Wire Galvanized PVC Coated - Common Specification List
