razor barbed tape for military, prison, and high-security perimeter barrier
Razor Barbed Tape is a modern security fencing material fabricated with razor-sharp steel blade and high-tensile wire, offering higher security level deterrence over the traditional stranded barbed wires. Barbed Tape can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with sharp piecing and cutting razor blades mounted at the top of the wall, or, top of metal steel fencing panels to make climbing and touching extremely difficult. Concertina Razor Wire Barbed Tape is a long lasting and effective barrier trusted by security professionals and it is almost impossible to cut or destroy the razor blade tape without highly specialized tools.
Material: High-tensile steel, galvanized, stainless steel.
Blade Sizes: BTO-10, BTO-18, BTO-22, BTO-28, BTO-30 for different security levels and applications.
Coil Diameters: Razor barbed tape can be coiled into 450mm to 980mm, etc to fit various security needs and installations.
The wire and steel strip are galvanized against corrosion for outdoor uses:
Hot dipped galvanized barbed tape is treated with a thermal galvanizing that can effectively increase the strength and corrosion resistance of the carbon steel plate and wire materials. The processing of hot dipped zinc plating ensures a uniform zinc coating for the barbed tape and the strength of the coating.
Compared with stainless steel razor wire barbed tape, thermal galvanized barbed tape has less cost.
Razor Barbed Tape offers higher strength and higher security over twisted Barbed Wire:
Razor barbed wire features longer, sharper blades than stranded barbed wire, offering a higher security level. Razor barbed tape is typically used in high-security fencing for military and prisons, stranded barbed wire is more common in agricultural and residential perimeters.
Twisted steel barbed wire is made of thermal galvanized steel wires, and the razor barbed tapes are made by stamping and hot-dip galvanized steel plate with a barb length of over 10mm. Barbed tapes of various sizes can be made according to the specific safety requirements.
Razor wire barbed tape can be classified into BTC (barbed tape concertina) and BTO ( barbed tape obstacle), with detail information listed as below. BTC refers to long blade concertina barbed tape usually while BTO refers commonly to short blade barbed tape.
Barbed Tape Concertina (BTC) and Barbed Tape Obstacle (BTO) Standard materials are either galvanized or stainless steel.
CBT-65 Galvanized Concertina Razor Barbed Wire Tape
Material: Hot dipped galvanized wire and steel plate, stainless steel wire and plate.
Outside diameter : 450mm, 500mm, 600mm, 700mm, 800mm, 900mm, 960mm, 980mm, etc.
Number of Loops: 33, 56
Clips: 3 or 5 or no clips.
Package: Inner proof paper, outside weave bag or Carton.
Razor Wire Barbed Tapes Specifications:
| Type | Wire Gauge (SWG) | Barb Spacing (mm) |
Barbed Length (mm) | |
| Electric Galvanized & Hot-dip Galvanized |
10# x 12# | 75-150 | 15-30 | |
| 12# x 12# | ||||
| 12# x 14# | ||||
| 14# x 14# | ||||
| 14# x 16# | ||||
| 16# x 16# | ||||
| 16# x 18# | ||||
| PVC coated | before coating | after coating | 75-150 | 15-30 |
| 1.0mm -3.5mm | 1.4mm -4.0mm | |||
| SWG11#-20# | SWG8#-17# | |||
| PVC coating thickness: 0.4mm -0.6mm ; different coating colors are available. | ||||
| Concertina Barbed Tape (Standard Use) | ||||
| Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
| 450mm | 33 | 7-8M | CBT-60.65 | Single coil |
| 500mm | 56 | 12-13M | CBT-60.65 | Single coil |
| 700mm | 56 | 13-14M | CBT-60.65 | Single coil |
| 960mm | 56 | 14-15M | CBT-60.65 | Single coil |
| 450mm | 56 | 8-9M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 500mm | 56 | 9-10M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 10-11M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 8-10M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 700mm | 56 | 10-12M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 800mm | 56 | 11-13M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 900mm | 56 | 12-14M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 960mm | 56 | 13-15M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 980mm | 56 | 14-16M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross typ |
High Security Fence Barbed Tape Concertina Razor Wire

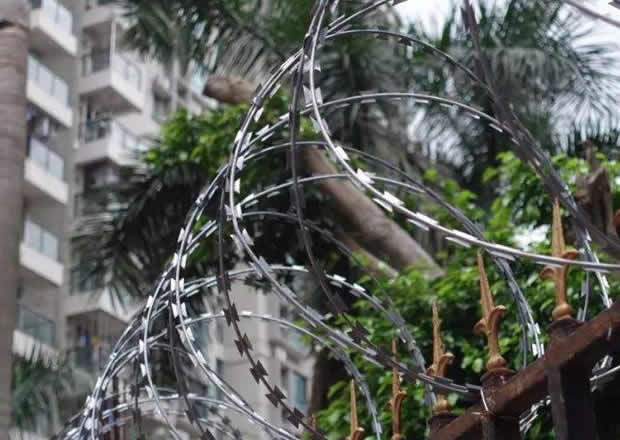

Hot dipped galvanized razor barbed tape mounted above metal tubular fencing for residential building perimeters
Heavy Duty Concertina Razor Barbed Tape
Concertina Wire or razor wire tape, manufactured in large coils which can be expanded as an element of passive safety.
Flat warp razor barbed wire is a new type of razor barbed wire. It is produced by pressing the single loop razor barbed wire into flat sheet, or pressing two loops into flat razor wire then expanding them across. We usually use Flat Wrap Razor Wire together with razor barbed wire to build a defencing wall, or use it alone as a fence. It is normally used in community, storehouse, mine, prison, key sites of national defence, etc.
Cross Type Razor Barbed Tape Wire is also called Double Loops Razor Barbed Wire or Concertina Barbed Tape. It's produced by two pieces of stainless steel razor wire or Zinc-coated Wire bound together by clips to make it stronger.
Single Loop Razor Barbed Wire is also called single coil razor barbed wire, it's installed without clips and runs in natural loops on the top of walls or fencings. Single loop razor barbed wire costs less and can be easily installed.
Concertina Razor Barbed Wire is widely used to manufacture the wire fence system for a fencing system or security system.
It's mainly applied in military facilities, communication stations, power distribution stations, border line of the prison, community protection, schools, factories, farms and other security fencing uses.
Can be installed in the form of barbed tape wire or concertina coil to walls or fencing tops.
Material: High carbon steel, tensile steel, galvanized steel sheet and wire, stainless steel sheet and wire. Usually, hot dipped galvanized razor barbed tape is popular in the market.
Surface finished: Electro galvanized, Hot dipped galvanized, PVC coated.
Razor Barbed Tape (RBT)
CBT 60 and CBT 65 type of razor wire tape
Razor wire tape CBT-65/60
1x 100 m roll each

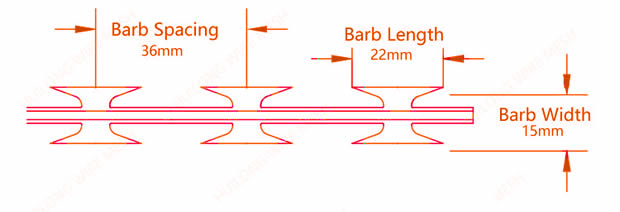

BTO-22 Profile Barbed Tape Specification - Spacing 36mm, barb width 15mm, barb length 22mm
| Barb Thickness (mm) |
Core Wire Diameter (mm) |
Barb Length (mm) |
Barb Width (mm) |
Barb Spacing (mm) |
Outer Diameter (mm) |
| 0.3, 0.35, 0.4, 0.45, 0.5 |
2.0, 2.2, 2.5, 2.8 |
22 | 15 | 36 | 300, 450, 900 |
Handling Tools:
Installing razor barbed tape requires heavy-duty gloves, fence pliers, bolt cutters, tensioning tools, a wire reel or dispenser, tie wires or clips, safety helmet.
Installing:
1,Install posts at regular intervals according to the strength of the material and the security level desired.
2, Mounting Brackets: Attach mounting brackets to the posts. These brackets will hold the coils or strands of razor barbed tape in place.
3, Unrolling and Attaching: Unroll the razor barbed tape and attach it to the brackets, ensuring it is stretched tight for maximum effectiveness. For higher security applications, multiple lines of barbed tape used in concertina coils.
4, Ensure that the installation complies with local regulations and safety standards.
Applications:
Concertina Barbed Tape is widely used by many countries in military secruity, prisons, detention houses, government buildings and other national security facilities, as following:
Military sites
Prisons
Government agencies
Banks
Residential community walls
Private houses,
villas
Highways, railway guardrails
National borders, etc.
