Double Strand Twisted Barbed wire hot dipped galvanized-concertina barbed wire Twin wire, zinc coated, Aluminum Coated, pvc coated available, Supplied with barbed wire stretcher-Slicer

Double Twisted Barbed Wire is a premier security fencing barrier against unauthorized access, used with mesh fences for safeguarding properties and boundaries.

Also known as Twin Wire Barbed Wire, featuring a double twist design, the reinforced barb wire provides a higher level of security compared to single barbed wire.

Concertina Double Strand Barbed Wire: When configured in coils, this dual line barb wire resembles a concertina and is used for high-security applications.

Tools: We supply also Barbed Wire Stretcher-Splicer for installation and maintenance of barbed wire fences.

• Materials: Galvanized steel wire, Stainless steel wire, PVC coated iron wire in blue, green, yellow and other colors.
  Process: twist
  Finishes: Silver galvanized, aluminum galvanized, pvc coated.
  Applications: Ideal for enhancing security and theft prevention in agricultural farms, factories, private villas, residential buildings (particularly the first floor), construction sites, financial institutions, military areas, and other areas requiring protection.

Twisting of barbed wire: traditional twist barbed wire, reverse twist.

• Traditional Twisting: Intertwining two or more iron wires to form a double-strand wire rope, onto which the barbed wire is then coiled.

• Reverse Twisting: Coiling the barbed wire around a single main wire before adding another wire to twist together, forming a double-strand barbed wire.

• Easy Installation: Barbed wire is designed for straightforward installation, allowing for rapid deployment across desired perimeters.
•
  Double Strand Barbed Fencing Wire Silver Paint

Twist method: double twist.
Coil type: Concertina coils
Colour: Silver

Material- Double strand barbed galvanised steel wire
Meters per roll- 800m
Kg for rolls- 50kg
Wire Diameter- 2mm
Number of Strands- double
Painting- 2 coats of silver paint
Number of rolls- 64

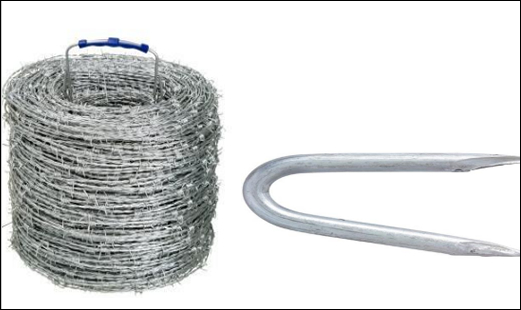

Barbed Wire Bundle

Barbed coil wire with great protection for fencing purposes (Each roll has total length of 400m)

Material: Galvanized steel
Twin strand “continuous torsion” type construction
Construction: The barbs shall have four points and shall be formed by twisting two-point wires, each two turns, tightly around both line wires making altogether four complete turns

Colour: Silver

Spacing between barbs: 70 - 80 mm
Continuous Wire Diameter: 2.5 mm
Wire Guard: 1.4 - 2.6 mm
The weight of the barbed wire (g/m): 120 – 155
The diameter of the bundle: 25- 35 cm
Surface treatment: P.V.C. coated
Razor Type: Cross Razor
Length of the wire in a bundle (Minimum) : 400 Meters
Reel size: approx. 400 m
Reel weight: approx. 50 kg
The wire to be distributed with matching galvanized steel nails for its installation

Packing

Waterproof paper inside then plastic film outside with pallet. Wooden case. Based on customer's requirement for shipment.

Tensile strength (N/mm2) 390- 590
Minimum breaking load of completed wire (kN) 3.0–3.7

Gauge of Strand and Barb in B.W.G.	Approximate Length per Kilo in Meter
	Barbs Spacing 3"	Barbs Spacing 4"	Barbs Spacing 5"	Barbs Spacing 6"
12x12	6.0617	6.7590	7.2700	7.6376
12x14	7.3335	7.9051	8.3015	8.5741
12-1/2x12-1/2	6.9223	7.7190	8.3022	8.7221
12-1/2x14	8.1096	8.814	9.2242	9.5620
13x13	7.9808	8.899	9.5721	10.0553
13x14	8.8448	9.6899	10.2923	10.7146
13-1/2x14	9.6079	10.6134	11.4705	11.8553
14x14	10.4569	11.6590	12.5423	13.1752
14-1/2x14-1/2	11.9875	13.3671	14.3781	15.1034
15x15	13.8927	15.4942	16.6666	17.5070
15-1/2x15-1/2	15.3491	17.1144	18.4060	19.3386

Double twisted hot dipped galvanized barbed wire

Twist type: double twisted.
Spikes: 4
Minimum breaking load: +350 Kgf
Alternating Torsion
Wire thickness: 1.63 mm.
Barbed distance: 5''.
Zinc coating: 240-250 g/m2.
Tensile: 450 - 500 MPa.
Roll length: 100 m, 250 m, 500 m.

Barbed Wire Stretcher-Splicer

This versatile device serves two primary functions: stretching barbed wire to the desired tension and splicing or joining ends of the wire together. The tool ensures that the barbed wire is taut and secure, providing an effective barrier for the area it encloses.
Barbed Stretcher-Splicer: Use for Splicing, stretching, and epositioning high tensile, barbed, or smooth wire fences

Material: Heavy Duty Steel
Dimension (cm): (Approx) 80x20x5
Weight (Kg): 1.5- 2.0kg
Features: Great Protection
Frame finishing: Powder Coated
Colour: Blue, Red or Golden
Operation: Controlled release holding ratchet to reduce line stress when wire is released

Packing

Waterproof paper inside then plastic film outside. Sealed in wooden boxes for easy transportation.

Why Double Stranded Barbed Wire for Fencing? How to choose between Double Stranded and Single Strand Barbed Wire

• Stuctures:
• Double Strand Barbed Wire features two strands of wire twisted together with barbs attached at intervals. The double strand design offers a more complex structure, which can enhance the wire's overall strength and durability.
• Single Strand Barbed Wire consists of a single strand with barbs. It's simpler in design, easier to handle and install in some cases.

Strength and Durability:
Double Strand Barbed Wire with double wires provides additional strength and rigidity, less likely to sag or be cut through easily, while Single Strand Barbed Wire may not provide the same level of strength and durability as the double strand.

Security Level: Double Strand Barbed Wire offers enhanced protection against intrusion, compared with Single Strand Barbed Wire. Single strand barbed wire is suitable for moderate security physical barrier and a psychological deterrent solution.

Installation and Maintenance
Installing double strand barb wire can be more challenging, while its enhanced durability may lead to lower maintenance needs over time.
The simpler design of single strand barb wire makes it easier and quicker to install, especially over large areas, while it may require more frequent maintenance checks.

Choose according to Applications
Double Strand Barbed Wire is often used in military facilities, high-security prisons, and to protect critical infrastructure or areas requiring high levels of security. Single Strand Barbed Wire is commonly used for agricultural fencing, residential property boundaries.

We supply Double Stranded Barbed Wire galvanized or PVC coated for fencing:

Comparing Plastic Coated Barbed Wire Compared with Galvanized Barbed Wire to choose the right products for your projects:
Durability and long lifespan: PVC coated barbed wire offers enhanced durability against the elements, more suitable for environments exposed to moisture, salt, and changing temperatures.
Corrosion Resistance: PVC coated wire offers superior resistance to rust and corrosion, extending its lifespan, compared with Galvanized barb wire.
Decorative and Visibility: PVC coated wire can be produced in various colors, offering options for increased visibility, depending on the desired application.
Safety Handling: PVC coating also provides a smoother surface compared to galvanized wire, reducing the risk of injury to animals or people contacting with the fence.
