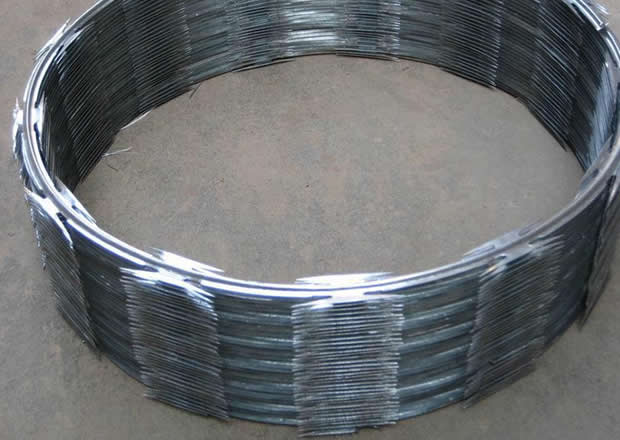

CBT-65 Concertina Razor Wire Coils for Military and high security fencing uses - 18" Loop concertina coils Stainless Steel or galvanized

CBT-65 razor wire is Concertina Barbed Tape with a blade profile of CBT-65, providing enhanced durability and formidable perimeter security for military uses and prisons.

CBT-65 razor wire, has larger wire diameter and thicker blades, offering higher tensile strength compared to CBT-22, more suitable for high-security applications:

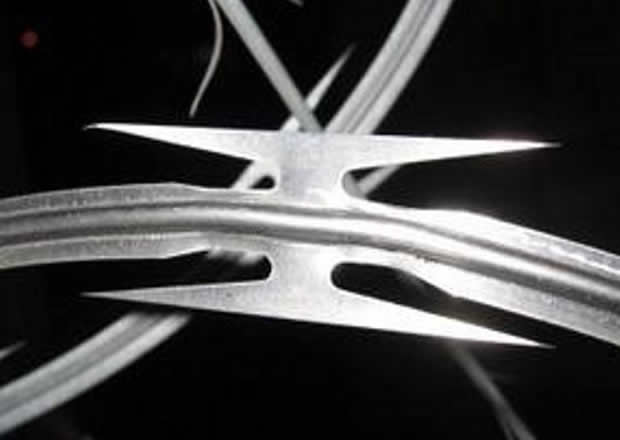

CBT-65 refers to Blade Profile. 65 is the length of the blade, which is 65mm. CBT-65 razor wire typically features a larger blade profile compared to CBT-22. The thickness of the blade for CBT-65 is also different from that of BTO-22. The thickness of CBT-65 blade is 0.6mm, the wire diameter is 2.6mm, the blade width is 21mm, and the blade spacing is 100mm (two distance between blades). CBT-65 razor wire is more expensive compared to CBT-22.

The circle diameter of CBT-65 razor wire range: 30cm-98cm, while 50cm, 60cm, 100cm are commonly used, and other specifications can be customized according to customer needs.

Installation method of CBT-65 razor wire:

1, The single-spiral blade barbed wire installation method: Installed in the form of direct expansion without the need for a buckle between the two circles.

2, Fixing to V-shaped or Y-shaped brackets, by fixing bolts, hot-dip galvanized or stainless steel wire, with stainless steel buckles. The distance between the circles is generally about 20-30cm.

3, As the blade is sharp, for the safety of the installer, wear protective gloves and tools for installation.

Packaging of CBT-65 razor wire: Inner moisture-proof paper and outer braided tape to prevent moisture and rust, avoid causing unnecessary losses.
Characteristics of CBT-65 stainless steel razor wire: Beautiful appearance, hard to damage, anti-corrosion, convenient construction, economical application and so on.
It is recommended to combine the blade barbed wire with the monitoring facility to achieve a more protective effect.

Galvanized RAZOR WIRE (3.6kg/Roll) #CBT65

Razor wire CBT-65 - electro galvanized zinc
450mm diameter and 28 rings
straight length 46.5 mt per roll after pull open
standard covered length 7.5 mt
3.6kg/roll or 5roll/ctn​

Model	Blade Thickness	Core Wire Diameter	Blade Length	Blade Width	Blade Space
CBT-65	0.6 ± 0.05 mm	2.5 ± 0.1 mm	65 ± 1 mm	21 ± 1mm	100 ± 1mm

Blade Type	Notes	Outside Diameter	Standard Length per Coil	No.of Loops
CBT-65	Single Coil	450mm	7M-8M	33
CBT-65	Single Coil	500mm	12M-13M	56
CBT-65	Single Coil	700mm	13M-14M	56
CBT-65	Single Coil	960mm	14M-15M	56

Customized Specifications

CBT-65 blade hot-dipped galvanized razor concertina wire coils on the fence top.
SS304 Blade Concertina Wire Diameter: 900mm loop 52 spiral and razor barbed wire with plastic tape.
Concertina razor wire (24" dia) material: ASTM a403 stainless steel.
CBT-65 razor wire in Stainless Steel 430, diameter 400mm, length 12,8m, 3,52kg/roll.

CBT-65 GALVANIZED RAZOR COIL FENCING
DIameter of wire 2.5mm
Weight per coil 4.5 kg.
Coil diameter 45cm

Hot dipped galvanized CBT-65 razor wire
18” diameter. 50ft. coil length.
Core wire metal ; #45steel
Wire diameter 2.5+1mm
Blade thickness : 0.06+0.05mm
Blade length : 65+2mm
Blade width : 21+1mm
Blade spacing : 100+2mm
Weight : 4.2kg/Roll
5 Roll per Carton/ 21Kgs/Box
Razor wire must be of high quality steel weather and water resistant.

Hot Dipped Galvanized CBT-65 Razor Wire
Concertina Barbed Tape (CBT), 18" diameter, 50ft coil length
Core Wire Material: #45 steel
Wire diameter: 2.5+1 mm
Blade thickness: 0.06+0.05mm
Blade length: 65+2mm, Blade width: 21+1 mm
Blade Sapcing: 1 00+2mm, Weight: 4.2kg/roll, 5 rolls/carton.

Razor wire CBT-65 single loop with clips
Innner wire: hot dipped galvanized wire 30g-50/m2,2.5mm
Sheet: hot dipped galvanized ,0.5mm
weight:4.15kg/coil
install length:6-8m
coil diameter: 450mm
Thickness 0.5mm(±0.05mm)
Wire diameter. 2.5mm(±0.1mm)
Barb Length 65mm(±2mm)
Barb Width 21mm(±1mm)
Packing water-proof paper inside, woven bag outside.

500mm Stainless Steel CBT-65 Concertina (10m) (Razor Wire）
CBT-65 Razor Wire Loop size 18".
Stainless Steel

Fittings we supply:
Double loop wire tie twisters, stainless or galvanized.
4 Pairs of gloves for handling the wire, size large.
