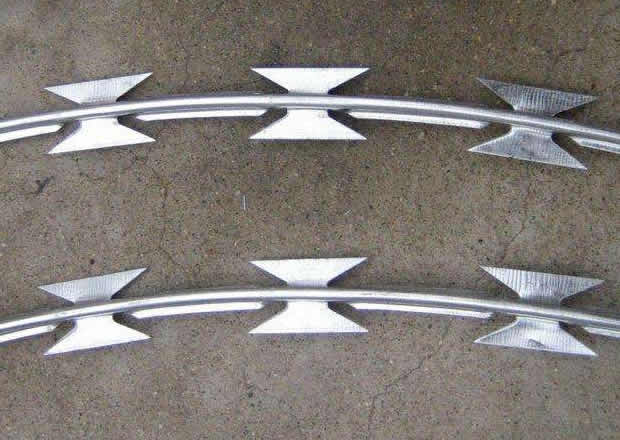

BTO-28 Blade Razor Wire concertina
BTO 28 Concertina wire is a type of razor wire designed and manufactured with a blade profile of 28mm length. As a medium blade razor wire, BTO 28 razor wire is widely used in wars as barrier for protection and defence, also found in agriculture, industry, road protection and other fields.
Material: BTO-28 concertina razor wire is made of galvanized sheet, stainless steel sheet, low carbon sheet, hot dipped galvanized and others.
Standard Specifications
| Model | Blade Thickness | Core Wire Diameter | Blade Length | Blade Width | Blade Space |
| BTO-28 | 0.5 ± 0.05mm | 2.5 ± 0.1mm | 28 ± 1mm | 15mm | 34mm |
| Blade Type | Notes | Outside Diameter | Standard Length per Coil | No.of Loops |
| BTO-28 | Cross type | 450mm | 8-9m(3 clips) | 56 |
| BTO-28 | Cross type | 500mm | 9-10m(3 clips) | 56 |
| BTO-28 | Cross type | 600mm | 10-11m(3 clips) | 56 |
| BTO-28 | Cross type | 600mm | 8-10m(5 clips) | 56 |
| BTO-28 | Cross type | 700mm | 10-12m(5 clips) | 56 |
| BTO-28 | Cross type | 800mm | 11-13m(5 clips) | 56 |
| BTO-28 | Cross type | 900mm | 12-14m(5 clips) | 56 |
| BTO-28 | Cross type | 960mm | 13-15m(5 clips) | 56 |
| BTO-28 | Cross type | 980mm | 14-16m(5 clips) | 56 |
Customized Specifications
BTO-28 Razor Barbed Wire Electric Galvanized
Core Wire diameter: 2.6 mm
Blade Thickness: 0.5mm
Blade Length: 28mm
Blade Width: 15mm
Blade Spacing: 34mm
Surface treatment: Galvanizing, Zinc quantity 45g/m2
Stretching/resistance:900 Map
Roll Length: 15 m
Roll diameter 1000mm
Barbed wire сoncertina with diameter of 600 mm on five gibs, thickness of wire 2,5 mm
CONCERTINA RAZOR WIRE 60 CM, WIRE 2,5 MM
· Diameter of 60 cm (before expansion),
· Loop 56 ± 1 nos
· Roll lenght: 8,00M, weight 15 kgs
· Thickness of core wire ø2,5±0,05 mm Hot Dip Galvanized steel wire (zinc cover 80-120 gr/m2)
· Wire Tensile strength, N/mm2 - 1310-1960 N/mm2
· In thickness of 0,5±0,05 mm Galvanised Sheet,
· Tensile Strenght of min. 1500 MPa (Galvanized– 140-270 gr/m2)
· Amount of clips on two coils - 5
BTO 28 Razor Ribbon Helical
Material: Galvanized & stainless steel, 18 in, 41 loops.
Forms: Flat wrap ribbons 500mm (20 in.)
Razor Wire
Length of Bundle - 20' (10 Kgs Bundle)
Size - 27" Dia
Gauge - 12 Gauge
