Razor ribbon mesh panel: BTO-22 WELDED RAZOR MESH, BTO-10 razor wire mesh panel, Diamond Mesh welded Fencing-attached to fence framework

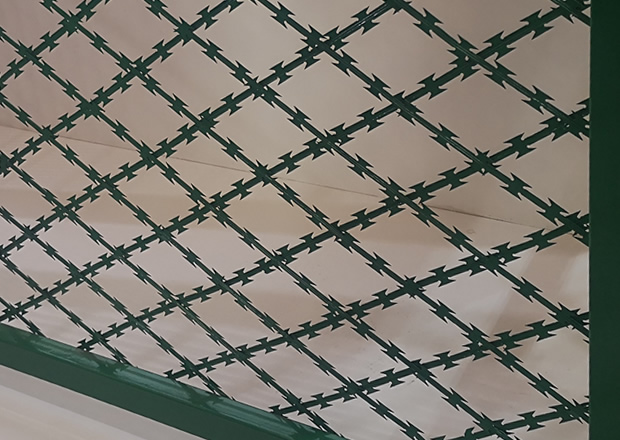

We supply 3650 ft long by 2.5 ft high 200 x 200mm BTO-22 welded razor wire mesh  in the diamond pattern, galvanized and powder coated. BTO-10 welded razor ribbon and other sizes available.

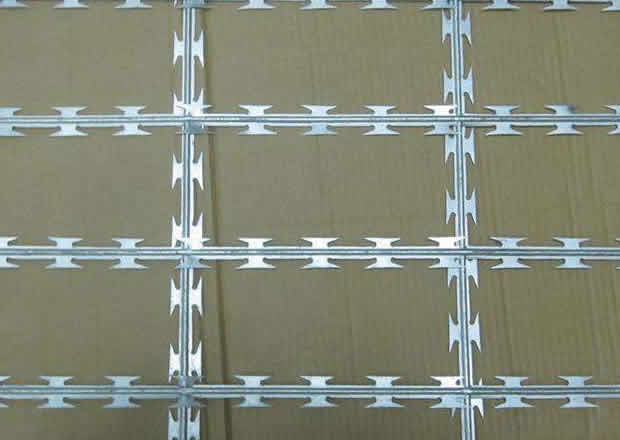

Processing: Welded ripper razor strip is a flat razor wire mesh sheet made by cross welding straight-line razor ribbon of various blade profiles, hence the product is also known as Welded Razor Mesh, or Razor Ribbon Mesh.

Application: Linear razor wire welded mesh can be used for anti-theft windows, prison isolation net, enclosure protection in government agencies, prisons, outposts, border defenses.
Features:
1, It can be constructed quickly, saves money, and can achieve the effect of a safe isolation net.
2, The knife-barbed isolation net has a variety of erection methods to choose from.
3, Prison razor wire isolation nets has a unique shape and is not easy to touch, it can achieve excellent protection and isolation effects.

Hole shapes include rhombus / diamond, square or rectangular.

Finishes: We supply welded ripper razor strip hot dipped galvanized and powder coated for security fence.

Customized specifications

Galvanized Steel Welded Razor Mesh in Rhombus Hole (150x300mm)

Welded Razor Mesh and Electrified Concertina Razor Wire

Specifications
Finished sizes 1.80x6.00m, made of galvanized steel razors of 27 – 30mm, having thickness > 0.5mm in a straight distance among them of 40-50mm, width (upper razor and bottom razor plate) approx. 21mm and steel wire of > 2mm thick, having high tensile strength and above 1500MPa.

Rhombus mesh size: 150x300mm.
At the connecting points, both vertically and horizontally shall be over covered with staples/clips.

Galvanization - Hot Dipped
Galvanization of all parts of the welded razor mesh, having finished sizes of 1.80x6.00m and rhombus dimensions of 150x300mm shall be ≥210gr/m2.
Whenever on the galvanized parts any holes / processing, etc., the galvanization should be effected after these are made.

Packing
Suitable packing for safety handling and transport arrangements.

Welded razor wire mesh with diamond mesh holes for the prison fencing

Diamond mesh 25 x 2.0mm and 25 x 2.5mm
Razor mesh (aperture size) 150mm x 300mm
"Y" post in standards 1850mm and 2450mm
Barbed Tape Concertinas 450mm and700mm all clipped
Galvanised posts 2400 x 48, 3000 x 48, 2400 x 76 and 3000 x 76.
Wooden posts 3000 x 50-75 and 3000 x 100-125

Razor Wire Mesh-6500 lf of Razor Wire Mesh x 90" H

Specs:
Stainless or Galv Mesh
3" Wide x 6" Tall Mesh
Stainless Steel Clips To Attach to Round Posts

Fence will be installed as follows:
2-3/8" O.D. Line Posts
4" O.D. Terminal Posts
4 Rows of Tension Wire
1-5/8" O.D. Bottom Rail

Galvanized welded razor wire mesh with diamond mesh holes
Thickness: 0.5mm
Wire diameter: 2.50mm
Blade length: 300mm
Blade width: 180mm
Blade spacing: 451mm
Finish: Galvanized steel strip or stainless steel with cut blades
Tensile strength of the wire: 1500 N/ square millimeter
Finishing color: PVC coated cross razor wire coil (Color “Chocolate coffee” to match with existing color of steel balustrades forming the existing perimeter)

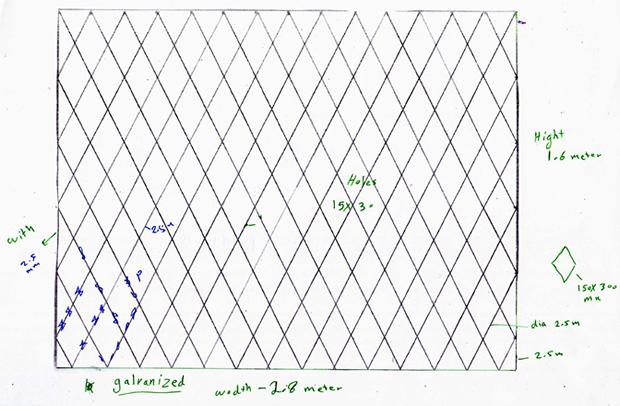

Welded Ripper Razor Strip


Razor diamond mesh Holes 150 mm * 300 mm Galvanized
Wire diameters 2.5 mm
Blades BTO-- 22
High 1.6 meters, length 3 meter or each bundle 18 meters.
Post 40 MM*40 MM* LENGTH 1.90 METERS THICKNESS 2MM

Welded Ripper Razor Mesh
Welded razor mesh - length 1.1km x high 2.1m
Galvanized
Diamond mesh: 150x75mm
Razor wire type: BTO -10.

Welded Razor Wire Mesh Security Fence Panels
Welded razor wire description: Razor wire, galv.

Wire mesh: Rectangular hole, razor wire mesh diagonal welded fence also available.

Welded Razor Mesh Fence, Square Hole Type
Material:
Hot galvanized steel sheet and stainless steel sheet 304 316 and so on
Galvanized wire(Electro galvanized and hot dipped galvanized)

Specifications
Welded Razor Wire Mesh Hole Type
Square Hole Size:100mmx100mm,150mmx150mm,200mmx200mm
Diamond Hole Size:75mmx150mm,100mmx200mm,150mmx300mm.

Welded Razor Wire Mesh Surface Treatment
Galvanized Coating: 50-60g/m2 , 80-100g/m2 , 200-250g/m
Pvc Coated Color: green, red, white etc.

Welded Razor Wire Mesh Application
Welded razor wire is mainly used for buildings, office unit, railway, highway, industry, agriculture, forest protection, military field, prison protection and so on.

Packing: in roll or in pallet.

316 stainless steel diamond razor mesh

Material: 316 stainless steel welded razor mesh.
Height: Typically 3 meters or higher.
Specification: Sheet thickness of 3.0mm, hole size of 50mm x 150mm, blade size of 22mm length.
Installation: The razor mesh panels are mounted on sturdy steel posts, usually spaced at intervals of 2-3 meters. Additional security measures such as anti-climb barriers or detection systems may be integrated for enhanced security.

Razor Ribbon Mesh Panel attached to Chain link, expanded metal or any fence framework for added perimeter protection - Project Example

5' x 10' Razor Ribbon Mesh Panel

Description:

Panel Width – 5-0’
Panel Height – 10-0’
Diamond Size: 2” wide x 6” high
Razor type:Medium and Short Barb
Material: Galvanized panels.
The razor panels have barbs on both sides.

Diamond Razor wire mesh panel has anti-climb properties and small openings filled with razors, make scaling Razor Mesh difficult.
Features:
1,Rigid, able to withstand harsh wind load
2,Anti-climbing physical deterrent 
3,No Rust due to heavy galvanizing
4,Percent open with Razors- 72%
5,Easy Installation, Razor Ribbon Mesh Panel installs without waste, dragging or overlapping

Installation of Razor Ribbon Mesh Panel over high security metal fencing:
1, No springing action during installation, resulting in less field work.
2, Razor ribbon panels can be installed new or as a retro-fit over current chain link fence or chain link fence framework.
3, Can be attached to any fence framework for added protection.
4, Razor mesh panel installation is similar to high security metal fencing using standard chain link fence procedures.
5, Razor ribbon mesh can easily accommodate the weight of additional perimeter security equipment including razorwire, surveillance equipment, and anti-tunneling expanded metal mesh panels.
6, Fence fittings are strongest in the industry and can be locked with breakaway nuts and bolts for added security.

Razor Mesh for Military Base Security Fence

Perimeter fence installed around military bases to safeguard against unauthorized access and protect sensitive installations.
• Material: Galvanized welded razor diamond mesh.
  • Height: 2.5 meters or higher.
  • Specification: Sheet thickness of 2.5mm, hole size of 75mm x 150mm, blade size of 15mm length.
  • Installation: Razor mesh panels are securely attached to steel or concrete posts using bolts or clips. The fence may be augmented with additional security features such as surveillance cameras, motion sensors, and lighting.
