anti climb razor wire,electro-galvanized and pvc coated green razor wire,galvanized concertina (razor) wire,galvanized concertina barbed wires coils
We produce various types of razor barbed tape wire and installation accessories. Our razor wire coils meet requirements of various forms of security fence to customize high security razor wire fence systems for our customers.
Razor Wire Types
According to different configurations, razor wires can be divided into: (concertina) spiral cross blade razor barbed wire, straight line razor wire, flat wrap razor wire, welded razor mesh, single coil barbed tape.
Razor wire barb types: Blade, twisted barb.
We supply twisted barbed razor wire galvanized, pvc coated, stainless steel 304 and 316, single strand, double strand.
Razor wire is divided into four types according to materials / finishes: stainless steel (430 grade, ss304, ss316), galvanized,aluminum coated, and PVC plastic-coated.
Installation methods: Razor wire generally has two forms of straight installation and spiral cross installation during construction.
Concertina Razor Barbed Wire Standards: We manufacture razor wires of various quality standards, NATO standard ripper razor wire is mainly for military uses.
Anti climbing razor wire coils:
Standard Specifications:
Barbed Tape Obstacle-BTO-10 BTO-18 BTO-22 BTO-30
Concertina Barbed Tape (CBT),CBT-60 concertina razor wire,blade Length 60±1mm, CBT-65 concertina razor wire,blade Length 65±1mm

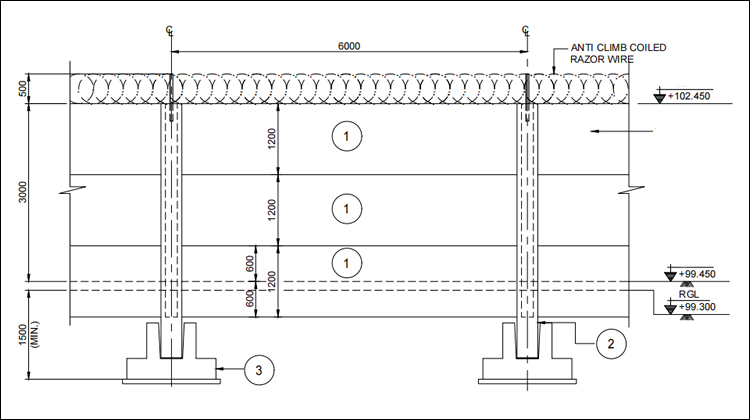

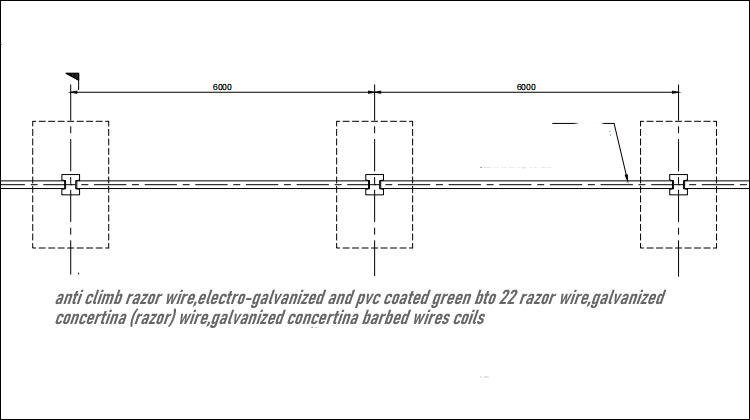

Installation Illustration of Coiled Razor Wire

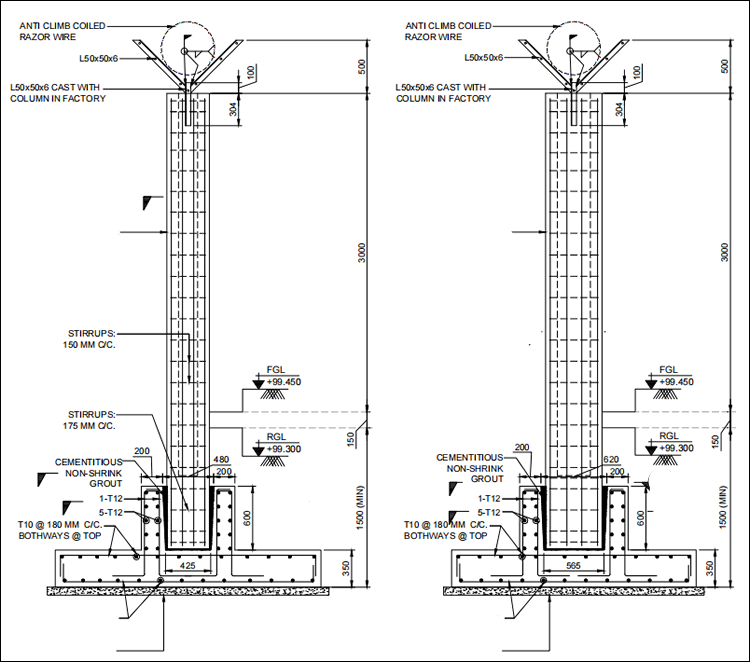

Anti climbing coiled razor wire installed and fixed to Y post:
Customized Specifications
Galvanized and SS Razor Wire Single Coils and Cross Spirals
450mm 33 8M CBT-65 Single coil
500mm 41 10M CBT-65 Single coil
700mm 41 10M CBT-65 Single coil
960mm 53 13M CBT-65 Single coil
500mm 102 16M BTO-10.15.22 Cross type
600mm 86 14M BTO-10.15.22 Cross type
700mm 72 12M BTO-10.15.22 Cross type
800mm 64 10M BTO-10.15.22 Cross type
960mm 52 9M BTO-10.15.22 Cross type
Weld mesh fence combined with razor wire
welded wire mesh 12.7x76.2,wire ø 3mm
concertina wire coil ø600mm
barbed wire 3rows
corner/end post ø89.9mm
BTO- 22 razor wire with hot dipped blade and electric galvanized wire
diameter - 900mm
plate thickness - 0.5mm
length - 9 metre
weight - 12.00 kg / roll
number of clips - 5
Galvanized Concertina Barbed wires coils (barbs not Razor):
-Wire must be new 100%.
-Wire must not be divided and fully Hot dipped galvanized and not via paint.
-The main wire must be 3 mm at least.
-Wire must be High-lift wire and the Strain strength must be (1400) KG/ mm square from type which used for the fences barbed wire and sample for test.
-Barbs with 4 heads each head 2cm at least, spaced at a distance of 60mm to 70mm fully galvanized wire must be 2mm thickness..
-Coils diameter before extend must be 1 meter
-Coils diameter after extend must be 90 cm to 95 cm.
-Coils length must be not less than 17 meter after extend.
-Coils must have 70 rings at least.
-Coils weight must be between 23KG to 24KG.
-Coils must have hands for carry and open.
Galvanized Barbed wires
Roll Length: 120 m
Wire diameter: 3 mm
Barb diameter: 2 mm
Barb length: 2 cm
Distance between barbs: 6 cm
Quantity of zinc: 40-60 G/m2
Stretching/resistance: 1350-1500 Mpa
Double Blade Razor Barbed Wire
Heavy duty double blade razor barbed wire dia 800mm x 12 mtr (extended length)
20ft x Razor wire with 0.45cm height concerntiner and flat tape
Security Razor Wire Heavy Duty Anti-rust Coated Diameter: 2FEET
Razor Wire Makes Easy Installation and Low Maintenance Fencing Tops:
Blade razor wire and concertina razor barbed wire offers a cost-effective solution for securing perimeters without the need for frequent adjustments or replacements, simple to install and requiring minimal upkeep.
The difference between blade razor wire and razor barbed wire: razor wire is formed by stamping and forming steel plate and attached to hot-dip galvanized steel wire (core wire), and the blade is made of sharp-edged galvanized steel plate or stainless steel sheet, and the core wire is combined with high-tensile steel wire.
Blade Razor Wire offers two benefits compared with razor barbed wire:
Superior Security: Blade razor wire's sharp edges deter intruders more effectively than twisted barbed wire, offering heightened protection for sensitive areas.
Long-lasting Durability: Blade razor wire withstands corrosion resistance and maintains its effectiveness over time, ensuring reliable security for extended periods.
We also supply: Less frightening Razor spikes for walls, castles, fencing tops.
We help with Seting up factories by supplying razor wire machines.
More fencing projects delivered and help constructed by our factory.
New products:
Razor spike guards- Anti climbing razor spikes for drain pipes, gas pipes, duct channels.
