Single-coil Barbed Obstacle Tape for Expanded Metal Fencing -SS, Galfan, Galvanized in 30 inch diameter, 750mm 51 loops, 915mm 52 Loops, 900mm 56 Loops

We supply Barbed Obstacle Tape Single-Coil with 30 inch diameter loop, core wire fabricated from spring quality stainless steel. Single Coil Razor Barbed Tape has a range of 33 to 53 loops, in standard coil length 8m, 10m, 13m. Other specifications and materials available as listed below.

Single Coil Barbed Obstacle Tape is utilized for enhancing perimeter security in military and border control applications, also for fencing of high-security areas and establishing temporary security barriers.

Material and Finishes:
Stainless steel (430 and other SS grades)
Galvanized steel
Galfan steel ( Aluminum coated)

Customized specifications

Spring Stainless Steel Barbed Obstacle Tape

Stainless Steel Concertina Razer Tape 750mm Diameter Obstacle Tape
– Material: Barbed obstacle tape single-coil with 0.098 inch diameter stainless steel core wire, 30 inch diameter, core wire fabricated from spring quality stainless steel.

Barbed tape provides 4 needle sharp barbs 1.25 inches long (2.50 inches overall) at 4 inch intervals, positioned at the inner and outer and edges of the coils.
Barbed tape material quality conform to AISI 430, stainless, rockwell hardness (30N) 40-45.
Installing: Barbed obstacle tape loops shall be spaced on 12 inch centers, 51 loops per coil, 5 stainless clips per loop attachment.
Special Packing: Barbed tape rolls are packed in High Quality Water Proof Packing.

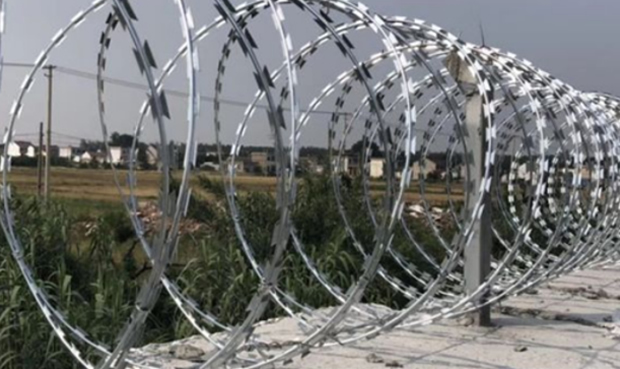

Single Coil Stainless Steel Concertina Razer Tape in 750mm Diameter Loops

Design Features:
Loop Arrangement:Single coil barbed obstacle tape has meticulously arranged loops, spaced on 12-inch centers, ensuring uniform coverage and maximum effectiveness.
Loop Attachment: Each loop is meticulously secured with five stainless steel clips, providing reliable attachment and reinforcement.

Accessories we supply for coiled barbed obstacle tape:
1, 2 x Bolt Cutters
2, 2 x Extended Clip Applicator
3, 2 x No Clip Removers
4, 3 x Wire Tie Rachets
5, 1000 x 12” Stainless Steel Twisted Wire Ties
6, 1000 x 6” Stainless Steel Wire Ties
7,10 kgs Extended Dovetail Stainless Steel Clips
8, 2 x Handling Hooks

Single Coil Barbed Tape Galfan-coated Steel 900 Diameter, 56 Loops

Galfan Coated Concertina Razor Barbed Tape DIA 900mm
Blade type: BTO-18
Coils: 56 Spirals
Material: Aluminum + Zinc coated
Blade thickness: 0.5 mm
Wire Dia.: 2.5 mm
Barb Length: 18-20 mm
Barb Width: 15 mm
Barb Spacing: 34 mm
Weight per coil: BTO - 18 / 9 kgs
Clips Per Coil: 5 PCS
Coil arranging: 5 steel clips per spiral.

Single Coil Barbed Tape Hot Dipped Galvanized 915mm Diameter 52 Spirals
Material: Hot Dipped Galvanized.
Coil Diameter 915 mm
Loops number: 52 spirals
Extended Length 10-15m
Steel strip thickness 0.5mm
Barb lengh 10mm
Barb width 12mm
Barb spacing 24mm

Expanded Metal Fencing Project Example

Single Coil Barbed Tape finds extensive use in various security fencing systems, particularly expanded metal fencing. The coiled razor barbed tape can be attached to the top of the metal fence, adding an extra layer of deterrent to potential intruders.

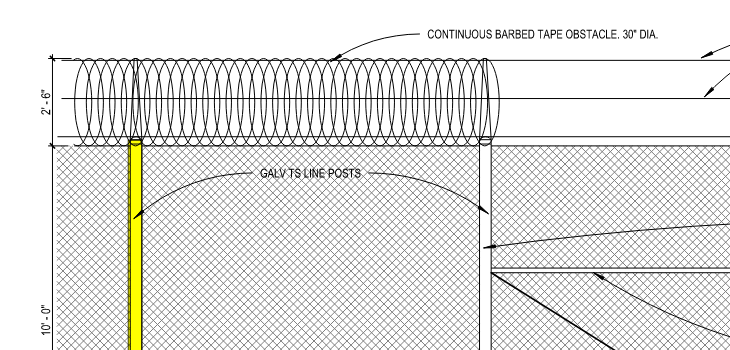

Fencing System:
Barbed Tape Obstacle 30 inch Dia Razor Wire
30 inch diameter razor wire, 2200 feet of fence for expanded metal fencing
Galvanized line posts supporting continuous barbed tape coil
Expanded metal fencing panel, hot dipped galvanized finish, diamond mesh fencing
