Razor Wire Ribbon Helical- straight ribbons and coiled razor WIRE HELICAL SECURITY FENCE - STAINLESS STEEL, Galvanized
Razor Ribbon offers high security for perimeter fencing. Razor ribbon helical is a kind of security barbed tape most recommended for private and industrial use. The coils of razor wire with sharp blades are tightly wound into a helical pattern, resembling a roller when deployed. Razor wire helical ribbon can be expanded or contracted for quick deployment to provide effective perimeter security.
Razor wire helical ribbon is commonly used where rapid installation and high deterrent fencing are required: military installations, prisons, and border security.
Razor wire ribbons in helical form allow the barbed tape to be installed with a variety of loop spacing options, depending upon the level of security required.
Material Types - Galvanized & Stainless Steel. The loops are installed in any distance, depending on the security desired, the most common being 18” or 450 mm.
Razor wire ribbon is a kind of galvanized steel wire tape, with two-sided blades with symmetrical arrangement. The galvanized steel wire diameter is of 2.5 millimeters, reinforced to 5 mm in diameter. The most important feature of razor ribbon wire is that its construction is able to maintain its structure.
Razor wire ribbon coil is manufactured in 3 coil diameters - 18” - 24” - 36” (450-600-750 MM). It is fabricated from A 1” (26MM) wide and 0.020 (0.50 MM) thick strip of G 90 galvanized material or 430 stainless steel. The coil is made from high tensile galvanized or stainless steel core wire. Galvanized steel wire materials can function under the impact of rain, fog, snow, dust and strong wind loads. The design is very easy to assemble and install, allowing the repeated use of it, for example, on construction sites.
Benefits:
The tight winding of the razor wire into a coil allows for compact storage and quick deployment when needed.
Ideal perimeter barrier
Long barb, wire-reinforced helical barrier formed without clipping
Helical barbed tape and core available in stainless steel or galvanized
Razor Type: BTO-10, BTO-12, BTO-18, BTO-22, BTO-30,CBT-60,CBT-65.
Razor ribbon types: straight line razor wire, single coil, double coil wire, flat ribbon, welded razor mesh fence.
Materials options: Electrical galvanized, hot - dipped galvanized, plastic coated steel, stainless steel, etc.
Surface finished: Electro galvanized, Hot dipped galvanized, PVC coated.
Application: Razor Barbed Ribbons are widely used in military affairs, prison, government, bank, and also in personal house, railway and borders.

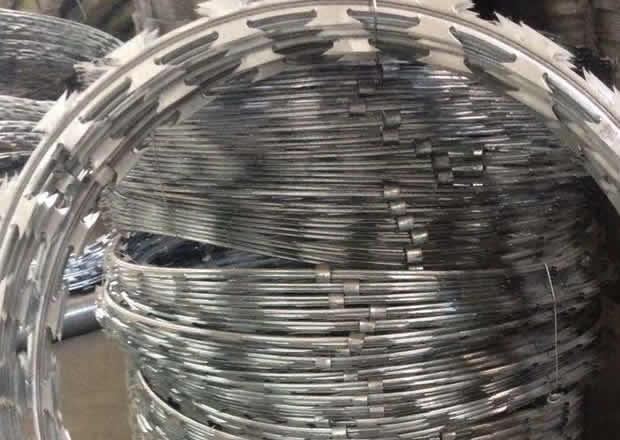

Stainless Steel 304 Razor Wire Ribbon Barbed
Coiled Razor Wire Ribbon can be used with chain link fence:
Installation of coiled razor ribbon installed atop chain link fence and barb wire
1. 18" coiled razor ribbon installed atop of 3-strand (4-point) barb wire.
2. Chain link fabric 1-1/4" non-climb top.
3. All fence posts and rails ss-40 weight pipe.
4. Gates to utilize industrial 180 degree gate hinges and pad lockable drop rods.
5. Fencing Atop existing CMU walls to be saddle mounted.
