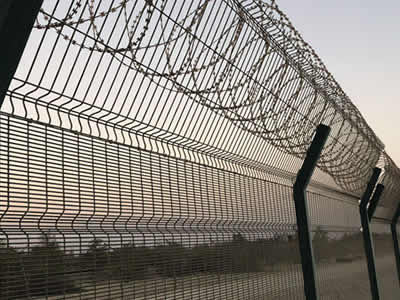

Razor Wire TOP Welded Mesh panel Fence - Welded mesh BTO-22 razor wire coils fencing, Anti Climb 358 welded mesh fence with razor wire cylinder
We have very good and experienced team to provide razor wire with welded mesh fence combined solutions to our clients around the world.
Razor wire tops applied: Three types: Concertina razor wire, barbed wire, or both.
Welded mesh panels applied: Three types: Galvanized welded mesh, green coated welded mesh panels, 358 weld mesh.
Applications: power plants, water treatment facilities, and transportation hubs
Customized Fencing Solutions
Welded mesh BTO-22 razor wire coils fencing
12 SWG PVC Coated galvanized plain wire in any position. Hooks 10 mm dia for fixing razor wire with angle iron.
Concertina Wire coil 12 gauge galvanized wire loop dia 0.75M complete all as spects.Tripe stand concertina razor wire 75 cm Dia length hot dipped galvanized, power coated Green color (conforming to BTO-22), AISI430 and AISI304.
358 type anti climb welded mesh fence
Anti Climb Fence 358 Style: Low carbon steel rod fence material, hot galvanised, with a mesh aperture of 75mm x 12.5mm wire mesh of at least 4mm diameter. Additional razor wire / barbed wire is also required: Razor barbed wire to be galvanized and suitable for of shore application / installation. Material can also be marine grade stainless steel. The razor wire is to be placed in loopes / concertina style not as straight single strandes.
358 Anti Climbing and Anti Cutting Barriers-Boarder protective fence
2.5m(H)x2.0m(W) 45 pieces
Fence include the accessories (flag base flat iron,razor barbed wire,screws and post).

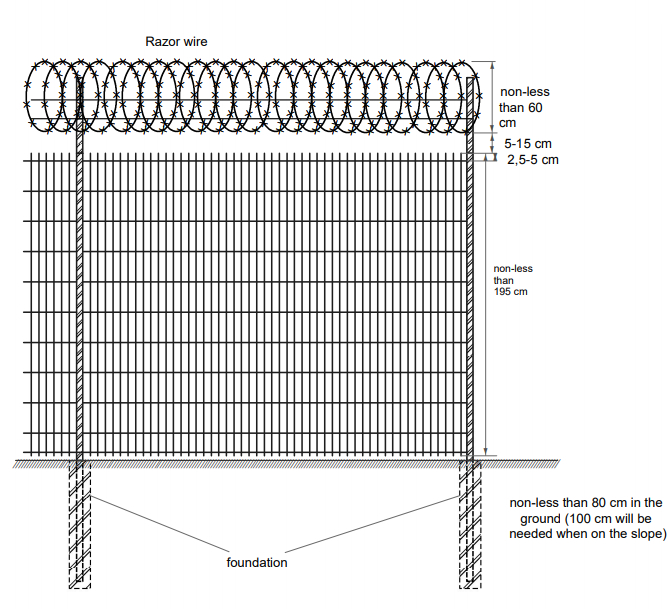

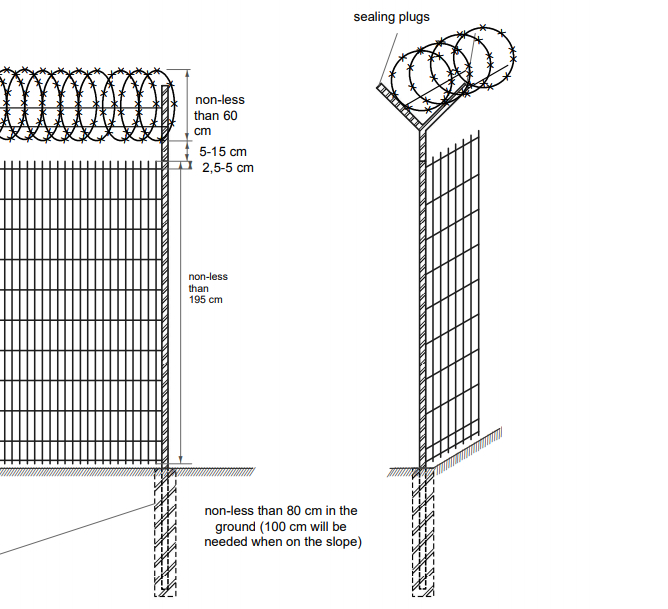

Protective segment fence should be made of welded beam type net of mesh size not bigger than 50 × 200 mm, round bar diameter - not less than 5 mm. Metal parts must be hot-galvanized, thickness non-less than 80 microns. Pillars - 60 × 40 × 3 mm installed to earth of at least 800 mm, on the slope - not less than 1 meter. Nuts should be such that it cannot be unscrewed. Segment fences (segment height of not less than 1.95 m) peak is Y-shaped on which razor wire should be installed, which would be supported by galvanized tension wire (3 pcs.). Y head should be adapted to the razor wire. Razor wire cylinder diameter of not less than 700 mm and not less than 600 mm when stretched. The fence must be at least 2.60 m height.
Fence is equipped with security gates and wickets.
Gates must be stable, with a frame, adapted to segmental protective fence and installed in such a way as to ensure the stability of a solid fence.
Gate frame must be made of pipe dimensions non-smaller than 60x40x2mm. Gate post dimensions non-smaller than 100x100x3mm with Y-shaped tops.
Wicket frame must be made of pipe dimensions non-smaller than 60x40x2mm. Post dimensions non-smaller than 60x60x3mm with Y-shaped tops.
Gate and wicket posts must have a guard for lock from rain/snow and holder loops for lock.
Gates must be locked by special locks. Gate width will be about 5 m and small gate about 1 m. At the top gates also has to have razor wire.
All doors and gates must be locked with the same key.
Welded Mesh Panel 2.8m x 2.91
Welded mesh:11 Gauge -0.120" (3.0mm) with GI - Horizontal Vertical Reinforcing Flat bars 15mm wide x 5.0mm thick (±2%) placed at 75mm (±2%) intervals
Mesh: 76.2mm x 12.70mm
Fence size: 2.80Mtr High x 2.91Mtr Wide
Concertina Razor Wire, Galvanized Core wire SS 316 Blades
Nr. Of Rows. 03 Nos
600 mm Diameter (±50mm)
SS - 316 Blades
Galvanized Core Wire Dia 2.50mm(± 0.2mm), Loops 24 (±1) as per ASTM F1910
Barbed wire rows
Nr. Of Rows. 03 Nos
12.5 - 0.098" (2.50mm) Gauge GI Wire according to ASTM A121 or ASTM A641,Class 111, With 14 gauge, 4
4 Line Post/ Corner Post/ End
Post/ Pull Post
Pipe Dia 88.90mm, SCH. 80 in accordance with ASTM A53. SCH. 80 Wall Thickness (7.62mm Thickness)
Post Length - 2.70Mtr above ground + 1.0mtr Below + 0.45 Mtr Y crank
Post Interval - 3.0 meter
All steel materials Hot Dip Galvanized as per ASTM A123
5 Strut
Pipe Dia 60.30mm, SCH. 40 in accordance with ASTM A53 at every 3m SCH. 40 Wall Thickness (3.91mm Thickness)
Post Length 3.0 meter
