Single Concertina Barbed Wire Coil for Water Distribution Station Boundary Fencing
Single concertina razor barbed wire row is an economic and convenient fencing material that can be quickly installed along precast boundary walls for various water works and power works.
This boundary fencing wall commonly include: Main gate, pedestrian gate and concertina barbed wire along boundary lines.
Project construction example:
Fencing for Water Distribution Station
1 row of single concertina galvanized steel 600 diameter with 2.5mm galvanized steel high tensile core wire for water transmission augmentation works construction.
Water Distribution Station Design:
Main Gate and Pedestrian Gate
Main gate: sliding door, with access controll system
100x50x3mm thick RHS gate frame

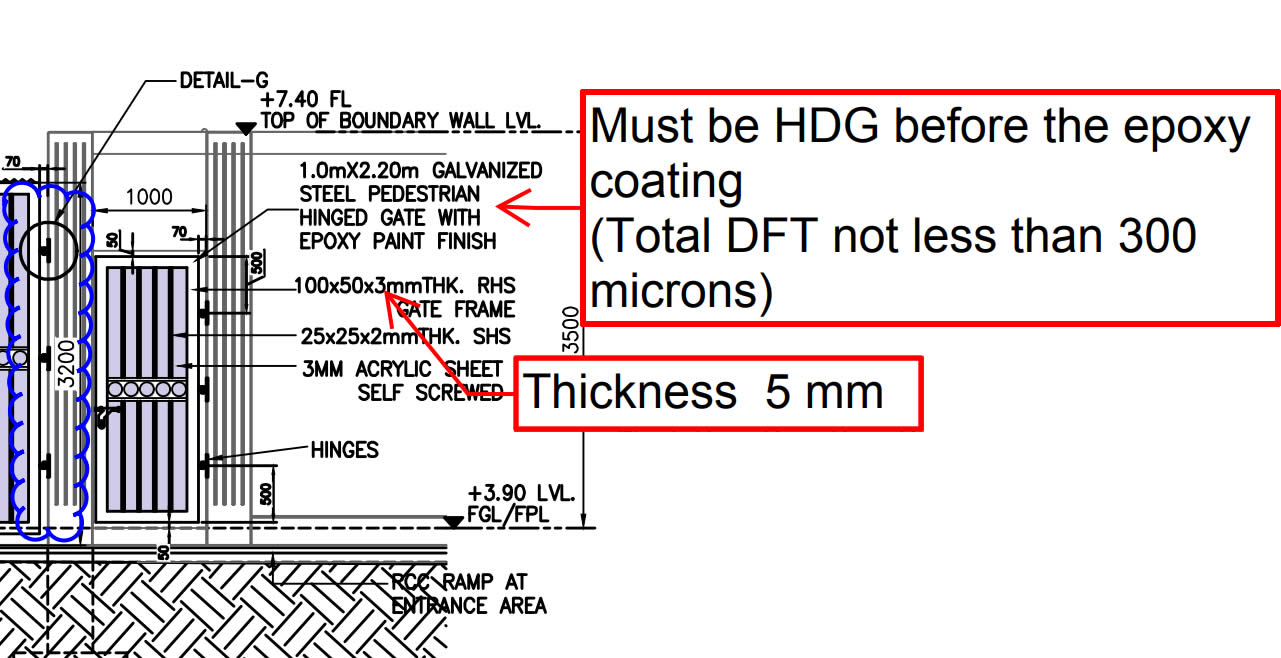

Pedestrian gate:
1.0mmx2.20m galvanized steel pedestrian hinged gate with hinges and other fittings

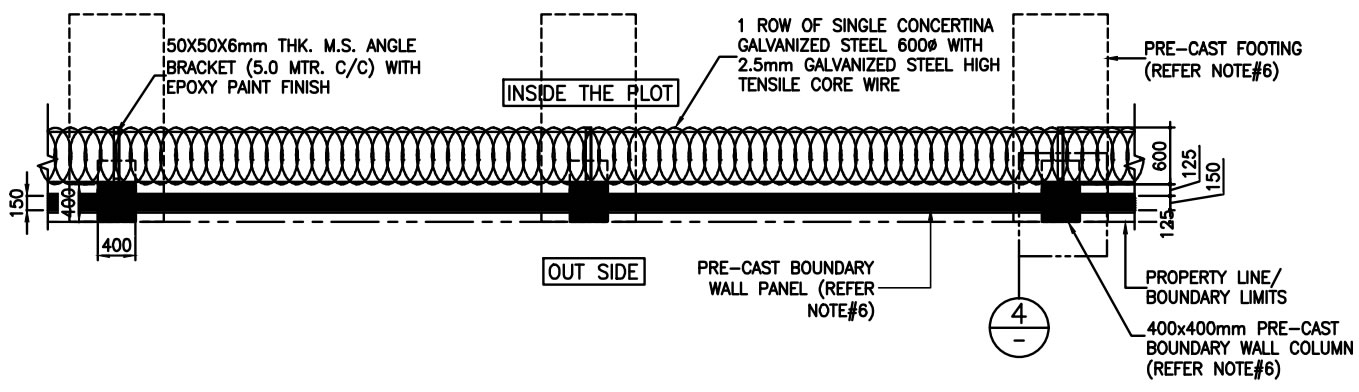

Concertina Boundary Fencing:
Brackets supported concertina razor barbed wire above precast boundary wall for fencing project construction
Fence Components:
Brackets: 50x50x6mm thickness mild steel angle bracket with epoxy paint finish
Fences: Single Concertina Wire 600 Diameter with 2.5mm Galvanized Steel Core Wire
Form: Single Concertina Row
Material:
Galvanized Steel
Core wire: Galvanized Steel High Tensile Core Wire
Installation: Single concertina mounted along pre-cast wall panels for enhanced boundary fencing and property protection

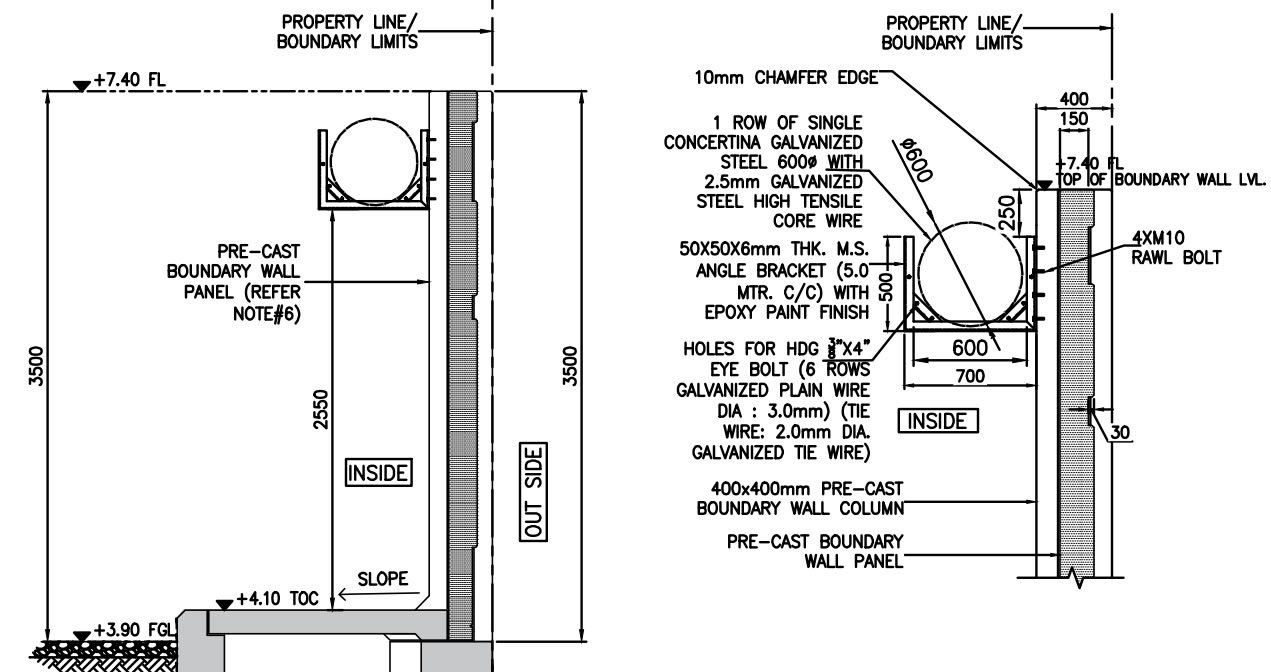

Design of Boundary wall limit:
400x400mm precaste boundary wall column and panel for property line and boundary limit.
50x50x6mm thickness mild steel angle bracket with epoxy paint finish
Galvanized tie wire: 2.0mm
